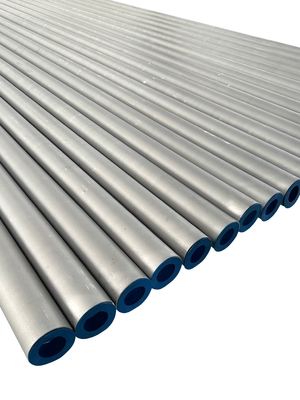

1/2in To 8in Astm A312 Schedule 10s ANSI Metric Seamless Tubing

MOQ:	100KGS
Price:	NEGOTIATION
Standard Packaging:	PACKAGED IN SEA-WORTH BUNDLES,PACKAGED IN PLYWOOD CASES
Delivery Period:	15-40DAYS
Payment Method:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity:	1000TONS/PER MONTH

Details Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

Certification

ISO PED CE TUV

Model Number

Seamless Pipes

Steel Grade:

304, 316, 321, 310S, Duplex

Corrosion Resistance:

High-Temperature Oxidation Resistance, Seawater Resistance

Standard:

AISI, ASTM, DIN, EN, GB

1/8''-4''

SCH 10S, SCH 40S, SCH 80S, SCH160

Length:

0.5M-15M OR AS REQUESTED

Applications:

Pharmaceutical Machinery, Aircraft And Aerospace, Automobile Industry, Heavy Industry

Performance Testing:

HT, RT, MT, PT, UT

Package:

PACKAGED IN SEA-WORTH BUNDLES OR PLYWOODE CASE OR AS REQUESTED

Highlight:

1/2in astm a312 schedule 10s

8in astm a312 schedule 10s

ANSI metric seamless tubing

Product Description

1/2"-8", 304, Schedule 10, ASTM A312 Economical Stainless Steel Seamless Pipe

►Products Information

Stainless steel and Ni-based alloy pipes and tubes are highly valued for their superior corrosion resistance, heat resistance, and low-temperature performance, making them essential for demanding applications in petroleum refining, petrochemicals, and energy sectors such as power and gas. Their exceptional durability and strength have also led to their widespread use in architectural projects, where their polished and refined finish adds to their visual appeal. Moreover, these materials are increasingly utilized in high-cleanliness industries, including semiconductor and liquid-crystal manufacturing equipment, where maintaining strict cleanliness standards is vital for achieving maximum operational efficiency.

►Product Size

STAINLESS STEEL (ASTM/ANSI)
B	O.D	SCH 5S	SCH 10S	SCH 10	SCH 20S	SCH 40S	SCH 40	STD	SCH 80S	SCH 80
1/8"	10.29	-	1.24	1.24	-	1.73	1.73	1.73	2.41	2.41
1/4"	13.72	-	1.65	1.65	-	2.24	2.24	2.24	3.02	3.02
3/8"	17.15	-	1.65	1.65	-	2.31	2.31	2.31	3.2	3.2
1/2"	21.34	1.65	2.11	2.11	-	2.77	2.77	2.77	3.73	3.73
3/4"	26.67	1.65	2.11	2.11	-	2.87	2.87	2.87	3.91	3.91
1"	33.4	1.65	2.77	2.77	-	3.38	3.38	3.38	4.55	4.55
1 1/4"	42.16	1.65	2.77	2.77	-	3.56	3.56	3.56	4.85	4.85
1 1/2"	48.26	1.65	2.77	2.77	-	3.68	3.68	3.68	5.08	5.08
2"	60.33	1.65	2.77	2.77	-	3.91	3.91	3.91	5.54	5.54
2 1/2"	73.03	2.11	3.05	3.05	-	5.16	5.16	5.16	7.01	7.01
3"	88.9	2.11	3.05	3.05	-	5.49	5.49	5.49	7.62	7.62
3 1/2"	101.6	2.11	3.05	3.05	-	5.74	5.74	5.74	8.08	8.08
4"	114.3	2.11	3.05	3.05	-	6.02	6.02	6.02	8.56	8.56
5"	141.3	2.77	3.4	3.4	-	6.55	6.55	6.55	9.53	9.53
6"	168.28	2.77	3.4	3.4	-	7.11	7.11	7.11	10.97	10.97
8"	219.08	2.77	3.76	3.76	6.35	8.18	8.18	8.18	12.7	12.7
10"	273.05	3.4	4.19	4.19	6.35	9.27	9.27	9.27	12.7	15.09
12"	323.85	3.96	4.57	4.57	6.35	9.52	10.31	9.52	12.7	17.48
14"	355.6	3.96	4.78	6.35	7.92	-	11.13	9.52	-	19.05
16"	406.4	4.19	4.78	6.35	7.92	-	12.7	9.52	-	21.44
18"	457.2	4.19	4.78	6.35	7.92	-	14.27	9.52	-	23.83
20"	508	4.78	5.54	6.35	9.52	-	15.09	9.52	-	26.19
22"	558.8	4.78	5.54	6.35	9.52	-	15.09	9.52	-	28.58
24"	609.6	5.54	6.35	6.35	9.52	-	17.48	9.52	-	30.96
26"	660.4	-		7.92	12.7	-	17.48	9.52		-

►Factory Shoot

1/2in To 8in Astm A312 Schedule 10s ANSI Metric Seamless Tubing 0

1/2in To 8in Astm A312 Schedule 10s ANSI Metric Seamless Tubing 2

►FAQ

Q1: Can you supply what's the service?

A: We can supply the kinds of matel raw materies and products,such as pipes,pipe fittings,flanges,coil,sheet,round bar and so on...

Q2: Are you manufacturer or trading company?

A: We are not only manufacturer but also a trading company,we have more than 12years export experience.

Q3: Can I customize products?

A: Yes. Let me know the specific customization requirements, and I will get back to you as soon as possible.

Q4: What is your minimum order quantity?

A: The MOQ for each product is different, so it would be recommended to refer to the detail page of the product you are interested in. If you need further clarification, send me the product link, and I will reply as soon as possible.

Q5: Can you provide the free samples?

A: We can supply the free samples but the sample express freight need paid by yourside.
