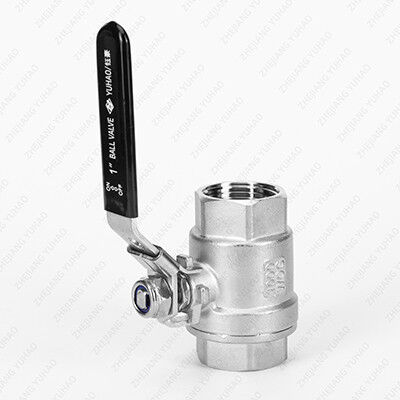

PureFlow Precision: Pharmaceutical-Grade Sanitary Locking Ball Valve for Critical Processes

MOQ:	100kgs
Price:	Negotiation
Standard Packaging:	Standard sea worth bundles,Standard Plywood cases
Delivery Period:	3-10days
Payment Method:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

YUHAO

Certification

ASTM, AISI, GB, DIN, JIS

Model Number

Stainless steel ball valves

Standard:

ASTM, JIS, GB, AISI, DIN, BS,EN

Bonnet Style:

Threaded Or Welded

Applications:

Industrial, Chemical, Oil & Gas, Water Treatment, Etc.

Thread:

NPT, BSPT...

Port Size:

1"-48"

Pressure:

High/Medium/Low Pressure

Working Pressure:

PN，PSI

Color:

Silver,chrome,white,Customer's Request,Grey

Temperature Of Media:

Medium Temperature,Normal Temperature,High Temperature

Highlight:

pharmaceutical grade sanitary ball valve

stainless steel locking ball valve

precision sanitary valve for critical processes

Product Description

PureFlow Precision: Pharmaceutical-Grade Sanitary Locking Ball Valve for Critical Processes

►Products description

Where purity meets security, PureFlow Precision delivers uncompromising performance for sensitive applications. Every component is designed with cleanability and contamination prevention as the top priority.

Purity-First Engineering

MirroFinish™ Interior: 10-15 Ra electropolished surface prevents bacterial adhesion
CIP/SIP Ready: Withstands daily clean-in-place and sterilization cycles
Zero Dead Leg Design: Eliminates product entrapment zones completely
Quick-Disconnect Evolution: Patented clamp system reduces maintenance time by 70%
Integrity Monitoring: Optional sensors for real-time performance tracking

Critical Industry Applications

Biopharmaceutical manufacturing
Vaccine production lines
Ultra-pure water systems
Semiconductor chemical delivery
Craft brewery and dairy processing

Certification Excellence

Meets FDA 21 CFR 177.2600
USP Class VI compliant
3-A Symbol Authorization
EHEDG certification available

►Product size

PN1.6MPa Main connection dimensions and weight

DN	15	20	25	32	40	50	65	80	100	125	150	200
L	130	140	150	165	180	200	220	250	280	320	360	400
H	59	63	75	85	95	107	142	152	178	252	272	342
W	130	130	160	180	230	230	400	400	650	1050	1050	1410
Wt(Kg)	2.5	3	5	6	7	10	15	19	33	58	93	160

PN2.5MPa Main connection dimensions and weight

DN	15	20	25	32	40	50	65	80	100	125	150	200
L	130	140	150	165	180	200	220	250	320	400	400	550
H	59	63	75	97	107	142	152	178	252	272	342	345
W	130	130	160	230	230	400	400	700	1100	1100	1500	1500
Wt(Kg)	2.5	3	5	6	7.5	10	15	20	33	60	93	175

PN4.0MPa Main connection dimensions and weight

DN	15	20	25	32	40	50	65	80	100	125	150	200
L	130	140	150	180	200	220	250	280	320	400	400	400
H	59	63	75	85	95	107	142	152	178	252	272	342
W	130	130	160	230	230	400	400	700	1100	1100	1500	1500
Wt(Kg)	3	4	5	7	9	12	18	28	46	75	106	190

PN6.4MPa Main connection dimensions and weight

DN	15	20	25	32	40	50	65	80	100	125	150	200
L	165	190	216	229	241	292	330	356	432	508	559	660
H	59	63	75	97	107	142	152	178	252	272	305	398
W	130	130	160	230	230	400	400	700	1100	1100	1500	1800
WtKg)	6.5	7	8	12	14	18	28	40	65	98	140	250

PN10MPa Main connection dimensions and weight

DN	15	20	25	32	40	50	65	80	100	125	150	200
L	165	190	216	229	241	292	330	356	432	508	559	660
H	59	63	75	97	107	142	152	178	252	272	305	398
W	130	130	160	230	230	400	400	700	1100	1100	1500	1800
Wt(Kg)	6.5	7	10	15	18	25	32	46	75	-	-	-

►Factory Shoot

PureFlow Precision: Pharmaceutical-Grade Sanitary Locking Ball Valve for Critical Processes 0

PureFlow Precision: Pharmaceutical-Grade Sanitary Locking Ball Valve for Critical Processes 1

PureFlow Precision: Pharmaceutical-Grade Sanitary Locking Ball Valve for Critical Processes 2
