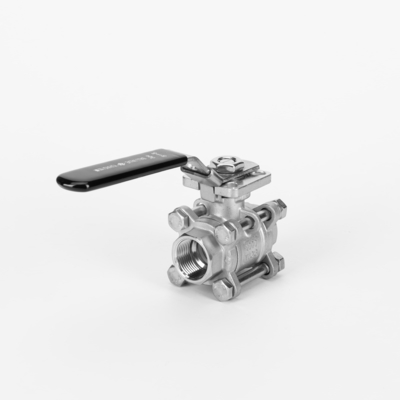

NPT BSPT Stainless Steel Valve AISI 304 Industrial 3 Piece Ball Valve

MOQ:	100kgs
Price:	Negotiation
Standard Packaging:	Standard sea worth bundles,Standard Plywood cases
Delivery Period:	3-10days
Payment Method:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

YUHAO

Certification

ASTM, AISI, GB, DIN, JIS

Model Number

Stainless steel ball valves

Pressure Rating:

Up To 6000 PSI

Operation:

Manual Or Actuated

Material:

Stainless Steel 201 304, 304L, 306, 306L

Brand Name:

Yuhao

Standard:

ASTM, JIS, GB, AISI, DIN, BS,EN

Bonnet Style:

Threaded Or Welded

Applications:

Petrochemical, Pharmaceutical, Food And Beverage, Industrial Automation

Thread:

NPT, BSPT...

Port Size:

2"-48"

Pressure:

High/Medium/Low Pressure

Highlight:

NPT BSPT Stainless Steel Valve

Stainless Steel Valve AISI 304

Industrial 3 piece ball valve

Product Description

NPT, BSPT ASTM, JIS, GB, AISI 304 Stainless Steel 3 Pieces Ball Lock Valve

►Products description

The Home Brew 304 Stainless Steel Three-Piece Ball Lock Valve is engineered for precision and dependability in homebrewing. Made from premium 304 stainless steel, it delivers exceptional corrosion resistance and durability for long-term use. Its three-piece design and 1/2" NPT threads ensure secure, leak-free connections, seamlessly integrating into brewing systems. The ball lock mechanism provides smooth and reliable flow control, catering to homebrewers seeking professional-quality fittings. Easy to install and maintain, this valve is a trusted solution for improving the efficiency and quality of homebrewing setups.

►Product size

PN1.6MPa Main connection dimensions and weight

DN	15	20	25	32	40	50	65	80	100	125	150	200
L	130	140	150	165	180	200	220	250	280	320	360	400
H	59	63	75	85	95	107	142	152	178	252	272	342
W	130	130	160	180	230	230	400	400	650	1050	1050	1410
Wt(Kg)	2.5	3	5	6	7	10	15	19	33	58	93	160

PN2.5MPa Main connection dimensions and weight

DN	15	20	25	32	40	50	65	80	100	125	150	200
L	130	140	150	165	180	200	220	250	320	400	400	550
H	59	63	75	97	107	142	152	178	252	272	342	345
W	130	130	160	230	230	400	400	700	1100	1100	1500	1500
Wt(Kg)	2.5	3	5	6	7.5	10	15	20	33	60	93	175

PN4.0MPa Main connection dimensions and weight

DN	15	20	25	32	40	50	65	80	100	125	150	200
L	130	140	150	180	200	220	250	280	320	400	400	400
H	59	63	75	85	95	107	142	152	178	252	272	342
W	130	130	160	230	230	400	400	700	1100	1100	1500	1500
Wt(Kg)	3	4	5	7	9	12	18	28	46	75	106	190

PN6.4MPa Main connection dimensions and weight

DN	15	20	25	32	40	50	65	80	100	125	150	200
L	165	190	216	229	241	292	330	356	432	508	559	660
H	59	63	75	97	107	142	152	178	252	272	305	398
W	130	130	160	230	230	400	400	700	1100	1100	1500	1800
WtKg)	6.5	7	8	12	14	18	28	40	65	98	140	250

PN10MPa Main connection dimensions and weight

DN	15	20	25	32	40	50	65	80	100	125	150	200
L	165	190	216	229	241	292	330	356	432	508	559	660
H	59	63	75	97	107	142	152	178	252	272	305	398
W	130	130	160	230	230	400	400	700	1100	1100	1500	1800
Wt(Kg)	6.5	7	10	15	18	25	32	46	75	-	-	-

►Factory Shoot

NPT BSPT Stainless Steel Valve AISI 304 Industrial 3 Piece Ball Valve 0

►FAQ

Q1: Are you manufacturer or trading company?

A: We are not only manufacturer but also a trading company,we have more than 12years export experience.

Q2: Can you supply what's the service?

A: We can supply the kinds of matel raw materies and products,such as pipes,pipe fittings,flanges,coil,sheet,round bar and so on...

Q3: Do you provide samples ? Is it free or extra?
A: We are glad to provide free samples to you, but we do not offer the freight.

Q4: How do you ensure product quality?

A: We have a dedicated team of experts who rigorously inspect each stage of the production process. Every product undergoes quality testing at our factory before it is shipped.

Q5: Where is your factory located?

A: Our factory is located in wenzhou City, zhejiang Province,China.
