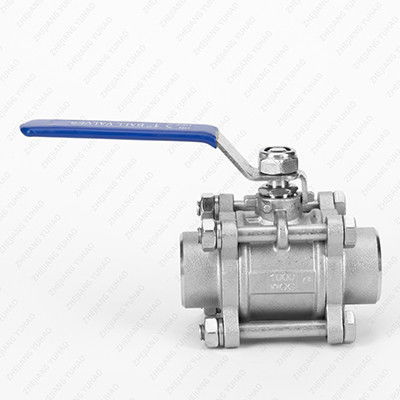

High-Purity 3-Piece SS Welded Ball Valve | Sanitary & CIP/SIP Systems
Products

Stainless Steel Seamless Pipes

Stainless Steel Butt Welded Pipe Fittings

Stainless Steel Flanges

BA Tube

Stainless Steel Screwed Pipe Fittings

Stainless Steel Forged Pipe Fittings

Stainless Steel Welded Pipes

Stainless Steel Coil Sheet

Stainless Steel Valve

Stainless Steel Sanitary Pipe Fittings
Contact Us
krystal@zhejiangyuhao.com
15356873957
Contact Now
High-Purity 3-Piece SS Welded Ball Valve | Sanitary & CIP/SIP Systems
  • name

High-Purity 3-Piece SS Welded Ball Valve | Sanitary & CIP/SIP Systems

MOQ: 100kgs
Price: Negotiation
Standard Packaging: Standard sea worth bundles,Standard Plywood cases
Delivery Period: 3-10days
Payment Method: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
YUHAO
Certification
ASTM, AISI, GB, DIN, JIS
Model Number
Stainless steel ball valves
Standard:
ASTM, JIS, GB, AISI, DIN, BS,EN
Bonnet Style:
Threaded Or Welded
Applications:
Industrial, Chemical, Oil & Gas, Water Treatment, Etc.
Thread:
NPT, BSPT...
Port Size:
1/8"-46"
Pressure:
High/Medium/Low Pressure
Working Pressure:
1000PSI/PN63
Color:
Silver,chrome,white,Customer's Request,Grey
Brand:
YUHAO
Temperature Of Media:
Medium Temperature,Normal Temperature,High Temperature
Highlight:

3-piece stainless steel ball valve

,

sanitary welded ball valve

,

CIP SIP compatible ball valve

Product Description

High-Purity 3-Piece SS Welded Ball Valve | Sanitary & CIP/SIP Systems


►Products description

Meet the gold standard in contamination-critical fluid handling. This 3-Piece Stainless Steel Welded Ball Valve is specifically engineered for ultra-pure applications in the pharmaceutical, biotechnology, food, and beverage industries. Its design prioritizes cleanability, sterility, and integrity, making it perfect for Clean-in-Place (CIP) and Steam-in-Place (SIP) processes.
Key Features & Benefits:
  • Electropolished Internals (Ra ≤ 15 µin):Creates an ultra-smooth, passive surface that minimizes bacterial adhesion, prevents particle shedding, and enhances corrosion resistance.
  • Zero Dead Leg Design:The optimized port and seat design significantly reduces dead space where media can stagnate, ensuring complete drainage and minimizing the risk of cross-contamination.
  • Orbital Welding Ready:The precision-made weld ends are perfectly prepared for automated orbital welding, guaranteeing a consistent, high-integrity, and spatter-free weld for a perfect aseptic joint.
  • Sanitary Finish:The exterior features a uniform mechanical polish, meeting industry standards for easy cleaning and a professional appearance.
  • Easy Disassembly for Maintenance:The three-piece construction allows for quick inspection and replacement of seals (typically FDA-compliant PTFE or EPDM) without cutting the pipe, ensuring minimal system downtime.

Technical Specifications:
  • Body Material:316L Stainless Steel (Low Carbon)
  • Surface Finish:Electropolished Internally & Externally
  • Seat Material:USP Class VI PTFE, EPDM, FFKM
  • Pressure Rating:ASME BPE Compliant, typically 150 PSI full vacuum
  • Temperature Range:-10°C to 150°C (with standard seals)
  • End Connection:Butt Weld ends suitable for orbital welding.
  • Size Range:1/2" to 2" (DN15 to DN50)
  • Certifications:Compliant with ASME BPE, 3-A Sanitary Standards (optional)

Applications:
  • WFI (Water for Injection) and Purified Water distribution
  • Process fluids in biopharmaceutical manufacturing
  • High-purity chemical transfer
  • Sanitary process lines in Food & Dairy production

Your Partner for Critical Process Integrity
We understand the stringent requirements of high-purity industries. Our valves are manufactured, cleaned, and packaged in a controlled environment to deliver the reliability your process demands.


►Product size

PN1.6MPa Main connection dimensions and weight

DN 15 20 25 32 40  50 65 80 100 125 150 200
L 130 140 150 165 180   200 220 250 280 320 360 400
H 59 63 75 85 95   107 142 152 178 252 272 342
W 130 130 160 180 230 230 400 400 650 1050 1050 1410
Wt(Kg) 2.5 3 5 6 7 10 15 19 33 58 93 160


PN2.5MPa Main connection dimensions and weight

DN 15 20 25 32 40 50 65 80 100 125 150 200
L 130 140 150 165 180 200 220 250 320 400 400 550
H 59 63 75 97 107 142 152 178 252 272 342 345
W 130 130 160 230 230 400 400 700 1100 1100 1500 1500
Wt(Kg) 2.5 3 5 6 7.5 10 15 20 33 60 93 175


PN4.0MPa Main connection dimensions and weight

DN 15 20 25 32 40  50 65 80 100 125 150 200
L 130 140 150 180 200 220 250 280 320 400 400 400
H 59 63 75 85 95 107 142 152 178 252 272 342
W 130 130 160 230 230 400 400 700 1100 1100 1500 1500
Wt(Kg) 3 4 5 7 9 12 18 28 46 75 106 190


PN6.4MPa Main connection dimensions and weight

DN 15 20 25 32 40 50 65 80 100 125 150 200
L 165 190 216 229 241 292 330 356 432 508 559 660
H 59 63 75 97 107 142 152 178 252 272 305 398
W 130 130 160 230 230 400 400 700 1100 1100 1500 1800
WtKg) 6.5 7 8 12 14 18 28 40 65 98 140 250


PN10MPa Main connection dimensions and weight

DN 15 20 25 32 40 50 65 80 100 125 150 200
L 165 190 216 229 241 292 330 356 432 508 559 660
H 59 63 75 97 107 142 152 178 252 272 305 398
W 130 130 160 230 230 400 400 700 1100 1100 1500 1800
       Wt(Kg) 6.5 7 10 15 18 25 32 46 75 - - -


►Factory Shoot

High-Purity 3-Piece SS Welded Ball Valve | Sanitary & CIP/SIP Systems 0

High-Purity 3-Piece SS Welded Ball Valve | Sanitary & CIP/SIP Systems 1

High-Purity 3-Piece SS Welded Ball Valve | Sanitary & CIP/SIP Systems 2
