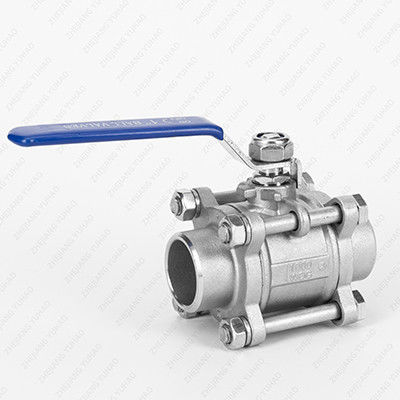

Full Port 3-Piece Welded Ball Valve: Minimize Pressure Drop

MOQ:	100kgs
Price:	Negotiation
Standard Packaging:	Standard sea worth bundles,Standard Plywood cases
Delivery Period:	3-10days
Payment Method:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

YUHAO

Certification

ASTM, AISI, GB, DIN, JIS

Model Number

Stainless steel ball valves

Standard:

ASTM, JIS, GB, AISI, DIN, BS,EN

Bonnet Style:

Threaded Or Welded

Applications:

Industrial, Chemical, Oil & Gas, Water Treatment, Etc.

Thread:

NPT, BSPT...

Port Size:

1/8"-46"

Pressure:

High/Medium/Low Pressure

Working Pressure:

1000PSI/PN63

Color:

Silver,chrome,white,Customer's Request,Grey

Brand:

YUHAO

Temperature Of Media:

Medium Temperature,Normal Temperature,High Temperature

Highlight:

Full Port 3-Piece Ball Valve

Stainless Steel Welded Ball Valve

Low Pressure Drop Ball Valve

Product Description

Full Port 3-Piece Welded Ball Valve: Minimize Pressure Drop

►Products description

A Full Port (or Full Bore) ball valve has an internal bore diameter that matches the diameter of the connecting pipeline. This design is crucial for applications where minimizing flow restriction, pressure drop, and allowing for pipeline pigging are required.

Advantages of a Full Port Design

Minimal Pressure Drop:The unrestricted flow path ensures negligible loss of pressure across the valve, improving system efficiency.
Piggable:The full bore allows for the passage of pipeline cleaning pigs or inspection gauges.
Reduced Cavitation Risk:Smooth, unrestricted flow minimizes the chances of cavitation, which can damage valves and pipes.
Ideal for Viscous Fluids:Prevents clogging and allows easy flow of slurries, polymers, and other thick media.

Full Port vs. Standard Port: When to Choose Which?

Choose Full Port:For pumping systems to reduce energy costs, for piggable lines, for viscous fluids, and when pressure drop is a critical concern.
Standard Port may be suitable:For simple on/off service with non-viscous fluids where system space or cost is a greater constraint.

►Product size

PN1.6MPa Main connection dimensions and weight

DN	15	20	25	32	40	50	65	80	100	125	150	200
L	130	140	150	165	180	200	220	250	280	320	360	400
H	59	63	75	85	95	107	142	152	178	252	272	342
W	130	130	160	180	230	230	400	400	650	1050	1050	1410
Wt(Kg)	2.5	3	5	6	7	10	15	19	33	58	93	160

PN2.5MPa Main connection dimensions and weight

DN	15	20	25	32	40	50	65	80	100	125	150	200
L	130	140	150	165	180	200	220	250	320	400	400	550
H	59	63	75	97	107	142	152	178	252	272	342	345
W	130	130	160	230	230	400	400	700	1100	1100	1500	1500
Wt(Kg)	2.5	3	5	6	7.5	10	15	20	33	60	93	175

PN4.0MPa Main connection dimensions and weight

DN	15	20	25	32	40	50	65	80	100	125	150	200
L	130	140	150	180	200	220	250	280	320	400	400	400
H	59	63	75	85	95	107	142	152	178	252	272	342
W	130	130	160	230	230	400	400	700	1100	1100	1500	1500
Wt(Kg)	3	4	5	7	9	12	18	28	46	75	106	190

PN6.4MPa Main connection dimensions and weight

DN	15	20	25	32	40	50	65	80	100	125	150	200
L	165	190	216	229	241	292	330	356	432	508	559	660
H	59	63	75	97	107	142	152	178	252	272	305	398
W	130	130	160	230	230	400	400	700	1100	1100	1500	1800
WtKg)	6.5	7	8	12	14	18	28	40	65	98	140	250

PN10MPa Main connection dimensions and weight

DN	15	20	25	32	40	50	65	80	100	125	150	200
L	165	190	216	229	241	292	330	356	432	508	559	660
H	59	63	75	97	107	142	152	178	252	272	305	398
W	130	130	160	230	230	400	400	700	1100	1100	1500	1800
Wt(Kg)	6.5	7	10	15	18	25	32	46	75	-	-	-

►Factory Shoot

Full Port 3-Piece Welded Ball Valve: Minimize Pressure Drop 0

Full Port 3-Piece Welded Ball Valve: Minimize Pressure Drop 1

Full Port 3-Piece Welded Ball Valve: Minimize Pressure Drop 2
