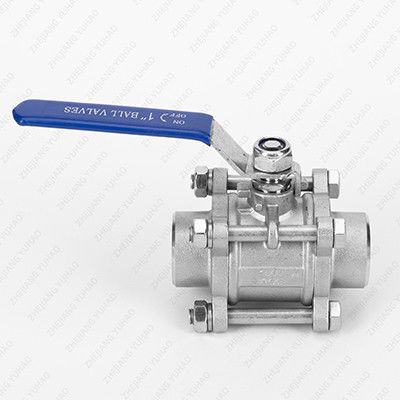

Corrosion Resistant 3-Piece Welded Ball Valve 316/316L SS
  • name

Corrosion Resistant 3-Piece Welded Ball Valve 316/316L SS

MOQ: 100kgs
Price: Negotiation
Standard Packaging: Standard sea worth bundles,Standard Plywood cases
Delivery Period: 3-10days
Payment Method: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
YUHAO
Certification
ASTM, AISI, GB, DIN, JIS
Model Number
Stainless steel ball valves
Standard:
ASTM, JIS, GB, AISI, DIN, BS,EN
Bonnet Style:
Threaded Or Welded
Applications:
Industrial, Chemical, Oil & Gas, Water Treatment, Etc.
Thread:
NPT, BSPT...
Port Size:
1/8"-46"
Pressure:
High/Medium/Low Pressure
Working Pressure:
1000PSI/PN63
Color:
Silver,chrome,white,Customer's Request,Grey
Brand:
YUHAO
Temperature Of Media:
Medium Temperature,Normal Temperature,High Temperature
Highlight:

316 stainless steel ball valve

,

welded ball valve corrosion resistant

,

3-piece stainless steel valve

Product Description

Corrosion Resistant 3-Piece Welded Ball Valve 316/316L SS


►Products description

Corrosion-Resistant 3-Piece Welded Ball Valve for Aggressive Media
In applications involving acids, chlorides, and other corrosive chemicals, valve material selection is critical. Our corrosion-resistant ball valves, made from 316 or 316L stainless steel, provide exceptional resistance to pitting and crevice corrosion, ensuring long service life in the most challenging environments.
Superior Corrosion Resistance Features
  • 316/316L Stainless Steel:The high molybdenum content in 316 SS offers superior resistance to chlorides and acidic environments compared to 304 SS.
  • Electropolished Internals (Optional):Creates a ultra-smooth, passive surface that minimizes adhesion and improves cleanability, ideal for high-purity applications.
  • Compatible Seat Materials:PTFE and PEEK seats are chemically inert and can handle a vast array of corrosive media.
  • Welded Construction:Eliminates crevices found in threaded valves where corrosive agents can concentrate and attack the metal.

Common Corrosive Applications
  • Chemical Processing Industry (CPI)
  • Bleach and Chlorine Handling
  • Seawater and Brine Systems
  • Pharmaceutical Acid Transfer
  • Pulp and Paper Mill Chemicals

►Product size

PN1.6MPa Main connection dimensions and weight

DN 15 20 25 32 40  50 65 80 100 125 150 200
L 130 140 150 165 180   200 220 250 280 320 360 400
H 59 63 75 85 95   107 142 152 178 252 272 342
W 130 130 160 180 230 230 400 400 650 1050 1050 1410
Wt(Kg) 2.5 3 5 6 7 10 15 19 33 58 93 160


PN2.5MPa Main connection dimensions and weight

DN 15 20 25 32 40 50 65 80 100 125 150 200
L 130 140 150 165 180 200 220 250 320 400 400 550
H 59 63 75 97 107 142 152 178 252 272 342 345
W 130 130 160 230 230 400 400 700 1100 1100 1500 1500
Wt(Kg) 2.5 3 5 6 7.5 10 15 20 33 60 93 175


PN4.0MPa Main connection dimensions and weight

DN 15 20 25 32 40  50 65 80 100 125 150 200
L 130 140 150 180 200 220 250 280 320 400 400 400
H 59 63 75 85 95 107 142 152 178 252 272 342
W 130 130 160 230 230 400 400 700 1100 1100 1500 1500
Wt(Kg) 3 4 5 7 9 12 18 28 46 75 106 190


PN6.4MPa Main connection dimensions and weight

DN 15 20 25 32 40 50 65 80 100 125 150 200
L 165 190 216 229 241 292 330 356 432 508 559 660
H 59 63 75 97 107 142 152 178 252 272 305 398
W 130 130 160 230 230 400 400 700 1100 1100 1500 1800
WtKg) 6.5 7 8 12 14 18 28 40 65 98 140 250


PN10MPa Main connection dimensions and weight

DN 15 20 25 32 40 50 65 80 100 125 150 200
L 165 190 216 229 241 292 330 356 432 508 559 660
H 59 63 75 97 107 142 152 178 252 272 305 398
W 130 130 160 230 230 400 400 700 1100 1100 1500 1800
       Wt(Kg) 6.5 7 10 15 18 25 32 46 75 - - -


►Factory Shoot

Corrosion Resistant 3-Piece Welded Ball Valve 316/316L SS 0

Corrosion Resistant 3-Piece Welded Ball Valve 316/316L SS 1

Corrosion Resistant 3-Piece Welded Ball Valve 316/316L SS 2


Tags:

2 piece ball valve,

stainless ball valve,

ss316l ball valve
