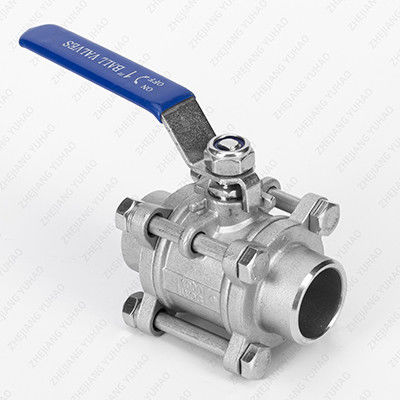

High Pressure 3-Piece Welded Ball Valve | 3000 PSI SS316 Valve |

MOQ:	100kgs
Price:	Negotiation
Standard Packaging:	Standard sea worth bundles,Standard Plywood cases
Delivery Period:	3-10days
Payment Method:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

YUHAO

Certification

ASTM, AISI, GB, DIN, JIS

Model Number

Stainless steel ball valves

Standard:

ASTM, JIS, GB, AISI, DIN, BS,EN

Bonnet Style:

Threaded Or Welded

Applications:

Industrial, Chemical, Oil & Gas, Water Treatment, Etc.

Thread:

NPT, BSPT...

Port Size:

1/8"-46"

Pressure:

High/Medium/Low Pressure

Working Pressure:

1000PSI/PN63

Color:

Silver,chrome,white,Customer's Request,Grey

Brand:

YUHAO

Temperature Of Media:

Medium Temperature,Normal Temperature,High Temperature

Highlight:

High pressure stainless steel ball valve

3-piece welded SS316 valve

3000 PSI stainless steel valve

Product Description

High Pressure 3-Piece Welded Ball Valve | 3000 PSI SS316 Valve |

►Products description

High-Pressure 3-Piece Welded Ball Valve (3000 PSI Rating)

When your application involves extreme pressures, standard ball valves can pose a significant risk. Our 3-piece welded ball valve is specifically engineered to handle high-pressure environments safely and reliably. With a robust 316 stainless steel body and ANSI 600 pressure rating, it ensures system integrity where failure is not an option.

Why Choose Our Valve for High-Pressure Applications?

ANSI 600 Rating:Certified for working pressures up to 3000 PSI.
Reinforced Body Structure:The multi-piece forged body provides superior strength compared to single-piece designs.
Integral Welded Connection:Butt-weld ends distribute stress evenly and prevent leaks at the connection points, a common failure point in threaded valves under high pressure.
Blow-Out-Proof Stem:The stem is securely retained within the valve body, preventing it from being ejected under high internal pressure.
Precision Machining:Tight tolerances in the ball and seat interface ensure a perfect seal, even after prolonged exposure to high cyclic pressures.

Technical Highlights for High-Pressure Service

Pressure Rating:ANSI 600 (3000 PSI)
Test Pressure:6000 PSI Hydrostatic Shell Test
Design Standard:API 6D, ASME B16.34
Ideal For:Hydraulic systems, wellhead control, compressor discharge, and high-pressure chemical injection.

►Product size

PN1.6MPa Main connection dimensions and weight

DN	15	20	25	32	40	50	65	80	100	125	150	200
L	130	140	150	165	180	200	220	250	280	320	360	400
H	59	63	75	85	95	107	142	152	178	252	272	342
W	130	130	160	180	230	230	400	400	650	1050	1050	1410
Wt(Kg)	2.5	3	5	6	7	10	15	19	33	58	93	160

PN2.5MPa Main connection dimensions and weight

DN	15	20	25	32	40	50	65	80	100	125	150	200
L	130	140	150	165	180	200	220	250	320	400	400	550
H	59	63	75	97	107	142	152	178	252	272	342	345
W	130	130	160	230	230	400	400	700	1100	1100	1500	1500
Wt(Kg)	2.5	3	5	6	7.5	10	15	20	33	60	93	175

PN4.0MPa Main connection dimensions and weight

DN	15	20	25	32	40	50	65	80	100	125	150	200
L	130	140	150	180	200	220	250	280	320	400	400	400
H	59	63	75	85	95	107	142	152	178	252	272	342
W	130	130	160	230	230	400	400	700	1100	1100	1500	1500
Wt(Kg)	3	4	5	7	9	12	18	28	46	75	106	190

PN6.4MPa Main connection dimensions and weight

DN	15	20	25	32	40	50	65	80	100	125	150	200
L	165	190	216	229	241	292	330	356	432	508	559	660
H	59	63	75	97	107	142	152	178	252	272	305	398
W	130	130	160	230	230	400	400	700	1100	1100	1500	1800
WtKg)	6.5	7	8	12	14	18	28	40	65	98	140	250

PN10MPa Main connection dimensions and weight

DN	15	20	25	32	40	50	65	80	100	125	150	200
L	165	190	216	229	241	292	330	356	432	508	559	660
H	59	63	75	97	107	142	152	178	252	272	305	398
W	130	130	160	230	230	400	400	700	1100	1100	1500	1800
Wt(Kg)	6.5	7	10	15	18	25	32	46	75	-	-	-

►Factory Shoot

High Pressure 3-Piece Welded Ball Valve | 3000 PSI SS316 Valve | 0

High Pressure 3-Piece Welded Ball Valve | 3000 PSI SS316 Valve | 1

High Pressure 3-Piece Welded Ball Valve | 3000 PSI SS316 Valve | 2
