Stainless Steel 3-Piece Welded Ball Valve - High-Performance Industrial Valves
  • name

Stainless Steel 3-Piece Welded Ball Valve - High-Performance Industrial Valves

MOQ: 100kgs
Price: Negotiation
Standard Packaging: Standard sea worth bundles,Standard Plywood cases
Delivery Period: 3-10days
Payment Method: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
YUHAO
Certification
ASTM, AISI, GB, DIN, JIS
Model Number
Stainless steel ball valves
Standard:
ASTM, JIS, GB, AISI, DIN, BS,EN
Bonnet Style:
Threaded Or Welded
Applications:
Industrial, Chemical, Oil & Gas, Water Treatment, Etc.
Thread:
NPT, BSPT...
Port Size:
1/8"-46"
Pressure:
High/Medium/Low Pressure
Working Pressure:
1000PSI/PN63
Color:
Silver,chrome,white,Customer's Request,Grey
Brand:
YUHAO
Temperature Of Media:
Medium Temperature,Normal Temperature,High Temperature
Highlight:

stainless steel welded ball valve

,

industrial high-performance ball valve

,

3-piece stainless steel valve

Product Description

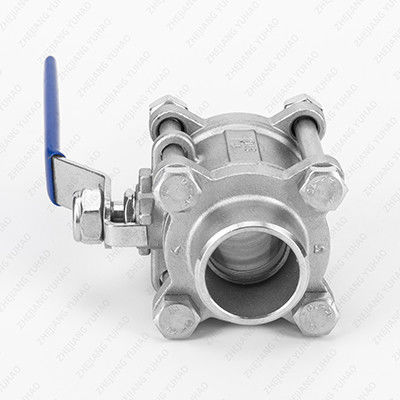

Stainless Steel 3-Piece Welded Ball Valve - High-Performance Industrial Valves


►Products description

Welcome to the ultimate solution for critical fluid control systems. Our Stainless Steel 3-Piece Welded Ball Valve is engineered for applications where leak-tight integrity, maximum durability, and long service life are non-negotiable. The unique three-piece design with butt-weld ends provides a permanent, robust connection, eliminating potential leakage points common in flanged or threaded valves.
Why Choose Our 3-Piece Welded Ball Valve?
  • Permanent, Leak-Free Connection:Butt-weld ends offer superior integrity compared to threaded or flanged ends, ideal for high-pressure and hazardous fluid systems
  • Superior Strength & Durability:Constructed from 304 or 316 stainless steel, these valves resist corrosion, erosion, and high pressures, ensuring longevity in harsh environments.
  • Effortless In-Line Maintenance:The three-piece design allows for easy removal of the valve centerpiece (ball and seats) for inspection, cleaning, or repair without disturbing the pipeline connections. This saves significant time and cost on maintenance.
  • Full Port Design (Optional):Minimizes pressure drop and allows for pigging, providing efficient flow and easy pipeline cleaning.
  • Versatile Applications:Perfect for a wide range of industries, including oil & gas, chemical processing, power generation, pharmaceuticals, and marine applications.

Key Features at a Glance
  • Body Material:304/316 Stainless Steel (CF8/CF8M)
  • End Connection:Butt-Weld (BW) to ASME B16.25 standards.
  • Design Standard:API 6D, ASME B16.34
  • Pressure Rating:ANSI Class 150 to 600, PN16 to PN100.
  • Temperature Range:-29°C to 200°C (-20°F to 400°F) with standard seats. Higher temperatures available.
  • Port Type:Standard Port or Full Port (FBV).
  • Fire-Safe Design:Available with fire-tested API 607/API 6FA seats and seals.


►Product size

PN1.6MPa Main connection dimensions and weight

DN 15 20 25 32 40  50 65 80 100 125 150 200
L 130 140 150 165 180   200 220 250 280 320 360 400
H 59 63 75 85 95   107 142 152 178 252 272 342
W 130 130 160 180 230 230 400 400 650 1050 1050 1410
Wt(Kg) 2.5 3 5 6 7 10 15 19 33 58 93 160


PN2.5MPa Main connection dimensions and weight

DN 15 20 25 32 40 50 65 80 100 125 150 200
L 130 140 150 165 180 200 220 250 320 400 400 550
H 59 63 75 97 107 142 152 178 252 272 342 345
W 130 130 160 230 230 400 400 700 1100 1100 1500 1500
Wt(Kg) 2.5 3 5 6 7.5 10 15 20 33 60 93 175


PN4.0MPa Main connection dimensions and weight

DN 15 20 25 32 40  50 65 80 100 125 150 200
L 130 140 150 180 200 220 250 280 320 400 400 400
H 59 63 75 85 95 107 142 152 178 252 272 342
W 130 130 160 230 230 400 400 700 1100 1100 1500 1500
Wt(Kg) 3 4 5 7 9 12 18 28 46 75 106 190


PN6.4MPa Main connection dimensions and weight

DN 15 20 25 32 40 50 65 80 100 125 150 200
L 165 190 216 229 241 292 330 356 432 508 559 660
H 59 63 75 97 107 142 152 178 252 272 305 398
W 130 130 160 230 230 400 400 700 1100 1100 1500 1800
WtKg) 6.5 7 8 12 14 18 28 40 65 98 140 250


PN10MPa Main connection dimensions and weight

DN 15 20 25 32 40 50 65 80 100 125 150 200
L 165 190 216 229 241 292 330 356 432 508 559 660
H 59 63 75 97 107 142 152 178 252 272 305 398
W 130 130 160 230 230 400 400 700 1100 1100 1500 1800
       Wt(Kg) 6.5 7 10 15 18 25 32 46 75 - - -


►Factory Shoot

Stainless Steel 3-Piece Welded Ball Valve - High-Performance Industrial Valves 0

Stainless Steel 3-Piece Welded Ball Valve - High-Performance Industrial Valves 1

Stainless Steel 3-Piece Welded Ball Valve - High-Performance Industrial Valves 2
