ASTM DIN Stainless Steel Welded Tube Oil And Gas Plants Boiler Steel Pipe

MOQ:	100kgs
Price:	Negotiation
Standard Packaging:	Standard sea worth bundles,Standard Plywood cases
Delivery Period:	3-10days
Payment Method:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity:	2000tons/per month

Details Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

Certification

ISO,TS,PED,CE,TUV

Model Number

10-610MM

Material:

Stainless Steel 304, 304L, 310S, 316L

3mm-3000mm

0.5mm-50mm

Length:

5800mm,6000mm,12000mm Or As Requested

Surface:

Polished 180G/240G/320G/600G

Price Terms:

EXW,FOB,CIF And So On

Package:

Packed In Sea-worth Bundles Or Plywood Cases

Standard:

ASTM, DIN, JIS, ISO

Applications:

Chemical, Petroleum, Power, Gas, Metallurgy, Shipbuilding, Construction

Surface Finish:

Bright Annealed, Pickled, Polished, Sand Blasted

Corrosion Resistance:

Acid Resistance, Alkali Resistance, Oxidation Resistance, Seawater Corrosion Resistance

Highlight:

ASTM stainless steel welded tube

DIN jis stainless steel pipe

Gas Plants boiler steel pipe

Product Description

ASTM, DIN, JIS, ISO Stainless Steel Welded Pipe Tube For Oil And Gas Plants

►Products Description

Stainless steel welded tubes are durable, corrosion-resistant pipes manufactured by welding stainless steel strips or coils. These tubes are widely used in industries such as construction, automotive, chemical processing, and food production due to their strength, versatility, and affordability. Available in various grades like 304 and 316, they offer excellent resistance to rust, heat, and chemicals, ensuring long-term performance in demanding environments. The welding process ensures consistent quality and precise dimensions, making them suitable for structural, mechanical, and fluid transportation applications. With a smooth surface finish and customizable sizes, stainless steel welded tubes are a cost-effective solution for both industrial and decorative purposes, combining functionality with reliability.

►Pipes Size

ASTM A312/A778(B36.19)

Nominal Outside Diameter

OD(mm)

Thickness(mm)

NPS	INCH	O.D	5S	10S	40S
8	1/4''	13.72	1.24	1.65	2.24
10	3/8''	17.15	1.24	1.65	2.31
15	1/2''	21.34	1.65	2.11	2.77
20	3/4''	26.67	1.65	2.11	2.87
25	1''	33.4	1.65	2.77	3.38
32	1-1/4''	42.16	1.65	2.77	3.56
40	1-1/2''	48.26	1.65	2.77	3.68
50	2''	60.33	1.65	2.77	3.91
65	2-1/2''	73.03	2.11	3.05	5.16
80	3''	88.9	2.11	3.05	5.49
90	3-1/2''	101.6	2.11	3.05	5.74
100	4''	114.3	2.11	3.05	6.02
125	5''	141.3	2.77	3.4	6.55
150	6''	168.28	2.77	3.4	7.11
200	8''	219.08	2.77	3.76	8.18
250	10''	273.05	3.4	4.19	9.27
300	12''	323.85	3.96	4.57	9.53

JIS G3459

Nominal Outside Diameter

OD(mm)

Thickness(mm)

NPS	INCH	O.D	5S	10S	20S	40S
8	1/4''	13.8	1.2	1.65	2.0	2.2
10	3/8''	17.3	1.2	1.65	2.0	2.3
15	1/2''	21.7	1.65	2.1	2.5	2.8
20	3/4''	27.2	1.65	2.1	2.5	2.9
25	1''	34	1.65	2.8	3.0	3.4
32	1-1/4''	42.7	1.65	2.8	3.0	3.6
40	1-1/2''	48.6	1.65	2.8	3.0	3.7
50	2''	60.5	1.65	2.8	3.5	3.9
65	2-1/2''	76.3	2.1	3.0	3.5	5.2
80	3''	89.1	2.1	3.0	4.0	5.5
90	3-1/2''	101.6	2.1	3.0	4.0	5.7
100	4''	114.3	2.1	3.0	4.0	6.0
125	5''	139.8	2.8	3.4	5.0	6.6
150	6''	165.2	2.8	3.4	5.0	7.1
200	8''	216.3	2.8	4.0	6.5	8.2
250	10''	267.4	3.4	4.0	6.5	9.3
300	12''	318.5	3.4	4.5	6.5	10.3

►Product Shoot

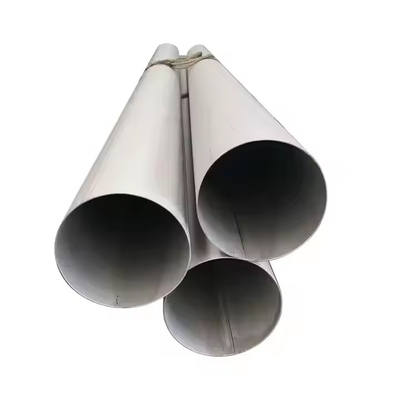

ASTM DIN Stainless Steel Welded Tube Oil And Gas Plants Boiler Steel Pipe 0

►FAQ

Q1: How long is your production lead time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q2: How is the quality about the products?

A: Quality is priority. We pay much attention to the quality check. Every product will be fully assembled and carefully tested before it's packed for shipment.

Q3: What is your minimum order quantity?

A: The MOQ for each product is different, so it would be recommended to refer to the detail page of the product you are interested in. If you need further clarification, send me the product link, and I will reply as soon as possible.

Q4: Can I customize products?

A: Yes. Let me know the specific customization requirements, and I will get back to you as soon as possible.

Q5: How is the quality?

A: Quality is priority. We pay much attention to the quality check. Every product will be fully assembled and carefully tested before it's packed for shipment.
