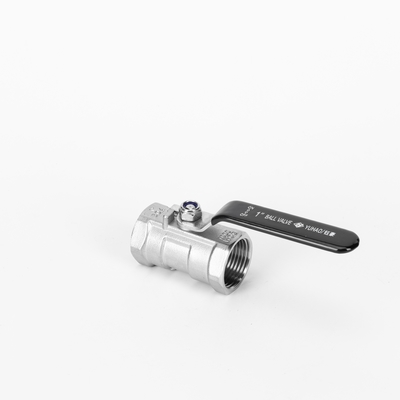

PN16 Manual Actuated 2 Inch Stainless Steel Ball Valve 1PC Ball Valve
  • name

PN16 Manual Actuated 2 Inch Stainless Steel Ball Valve 1PC Ball Valve

MOQ: 100kgs
Price: Negotiation
Standard Packaging: Standard sea worth bundles,Standard Plywood cases
Delivery Period: 3-10days
Payment Method: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
YUHAO
Certification
ASTM, AISI, GB, DIN, JIS
Model Number
Stainless steel ball valves
Durability:
High
Operation:
Manual Or Actuated
Material:
201 304, 304L, 306, 306L
Standard:
ASTM, JIS, GB, AISI, DIN, BS,EN
Application:
Flow Control
Applicable Media:
Water, Oil, Steam, Nitric Acid, Acetic Acid, Etc.
Corrosion Resistance:
High
Nominal Diameter:
1/4”~4”（DN6~DN100）
Application Scope:
Industrial, Chemical, Oil & Gas, Water Treatment, Etc.
Thread:
NPT, BSPT...
Highlight:

PN16 2 inch stainless steel ball valve

,

Manual 2 inch stainless steel ball valve

,

AISI 1pc ball valve

Product Description

1/4"-2", 304/316L, PN16 Manual or Actuated Stainless Steel 1PC Ball Valve



►Products description

The 304 Stainless Steel One-Piece Ball Valve is a robust and dependable valve designed for diverse industrial applications. Constructed from 304 stainless steel, it provides exceptional corrosion resistance and a compact, maintenance-friendly design. Key features include high durability, a double-seated PTFE-coated ball for leak-tight sealing, and ease of operation. This valve is ideal for use in water treatment, chemical processing, pharmaceutical, food and beverage, oil and gas, and HVAC systems. It operates effectively within a temperature range of -20°C to 180°C and can withstand pressures up to 100 bar.



►Product size

PN1.6MPa Main connection dimensions and weight

DN 15 20 25 32 40  50 65 80 100 125 150 200
L 130 140 150 165 180   200 220 250 280 320 360 400
H 59 63 75 85 95   107 142 152 178 252 272 342
W 130 130 160 180 230 230 400 400 650 1050 1050 1410
Wt(Kg) 2.5 3 5 6 7 10 15 19 33 58 93 160



PN2.5MPa Main connection dimensions and weight

DN 15 20 25 32 40 50 65 80 100 125 150 200
L 130 140 150 165 180 200 220 250 320 400 400 550
H 59 63 75 97 107 142 152 178 252 272 342 345
W 130 130 160 230 230 400 400 700 1100 1100 1500 1500
Wt(Kg) 2.5 3 5 6 7.5 10 15 20 33 60 93 175



PN4.0MPa Main connection dimensions and weight

DN 15 20 25 32 40  50 65 80 100 125 150 200
L 130 140 150 180 200 220 250 280 320 400 400 400
H 59 63 75 85 95 107 142 152 178 252 272 342
W 130 130 160 230 230 400 400 700 1100 1100 1500 1500
Wt(Kg) 3 4 5 7 9 12 18 28 46 75 106 190



PN6.4MPa Main connection dimensions and weight

DN 15 20 25 32 40 50 65 80 100 125 150 200
L 165 190 216 229 241 292 330 356 432 508 559 660
H 59 63 75 97 107 142 152 178 252 272 305 398
W 130 130 160 230 230 400 400 700 1100 1100 1500 1800
WtKg) 6.5 7 8 12 14 18 28 40 65 98 140 250



PN10MPa Main connection dimensions and weight

DN 15 20 25 32 40 50 65 80 100 125 150 200
L 165 190 216 229 241 292 330 356 432 508 559 660
H 59 63 75 97 107 142 152 178 252 272 305 398
W 130 130 160 230 230 400 400 700 1100 1100 1500 1800
       Wt(Kg) 6.5 7 10 15 18 25 32 46 75 - - -



►Shot Shoot

PN16 Manual Actuated 2 Inch Stainless Steel Ball Valve 1PC Ball Valve 0PN16 Manual Actuated 2 Inch Stainless Steel Ball Valve 1PC Ball Valve 1PN16 Manual Actuated 2 Inch Stainless Steel Ball Valve 1PC Ball Valve 2



►FAQ

Q1: How is the quality?

A: Quality is priority. We pay much attention to the quality check. Every product will be fully assembled and carefully tested before it's packed for shipment.



Q2: Can you supply what's the service?

A: We can supply the kinds of matel raw materies and products,such as pipes,pipe fittings,flanges,coil,sheet,round bar and so on...



Q3: Can I customize products?

A: Yes. Let me know the specific customization requirements, and I will get back to you as soon as possible.



Q4: What about your delivery time if we placed order?

A: We have large of ready stock,in general we can delivery within 2-10days.



Q5: Which payment terms you can accept?

A: We can accept TT,LC,DP,DA,Western Union or Negotiation.



Tags:

2 piece ball valve,

stainless ball valve,

ss316l ball valve
