New Energy Pipeline Stainless Steel Forged Pipe Fittings Equal Industrial Cross

MOQ:	100kgs
Price:	Negotiation
Standard Packaging:	Standard sea worth bundles,Standard Plywood cases
Delivery Period:	5-15days
Payment Method:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity:	2000tons/per month

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

YUHAO

Certification

ASTM, AISI, GB, DIN, JIS

Model Number

High Pressure pipe fittings

Shape:

Cross

Connection Type:

Butt Weld

Application:

Oil And Gas/Petrochemical/Chemical/Power/Shipbuilding/Automative

End Type:

Male/Female

Thread Type:

NPT/BSPT

Temperature Rating:

Up To 1000°F

Size:

1/8"-32"

Pressure Rating:

High Pressure

Material:

SS 316L

Finish:

Percision Turning And Forging

Certificate:

ISO 9001, CE

Highlight:

SS316L Stainless Steel Forged Pipe Fittings

Stainless Steel Forged Pipe Fittings

New Energy Internal Threaded Cross

Product Description

Stainless Steel Internal Threaded Cross Industrial New Energy Pipeline Equal Industrial Cross

►Products description

The Stainless Steel High-Pressure Equal Cross is a heavy-duty fitting engineered for high-pressure fluid systems. Made from premium stainless steel, it provides superior corrosion resistance and mechanical strength, making it well-suited for challenging environments like petrochemical, marine, and medical applications. Its equal cross configuration ensures even fluid distribution, perfect for intricate piping networks. Capable of withstanding pressures up to 19,000 psi and compatible with diverse media, it delivers dependable performance and straightforward installation, frequently incorporating finger-tight seals for added convenience.

►Products Size

DN	NPS	OD	Nominal Wall Thickness
DN	NPS	OD	Schss	Sch10S	Sch405	Sch8os	Sch10	Sch20	Sch30	STD	Sch40	Sch60	XS
6	1/8	10.3	-	1.24	1.73	2.41	-	-	-	1.73	1.73	-	2.41
8	1/4	13.7		1.65	2.24	3.02	-	-	-	2.24	2.24	-	3.02
10	3/8	17.1	-	1.65	2.31	3.2	-	-	-	2.31	2.31	-	3.2
15	1/2	21.3	1.65	2.11	2.77	3.73	-	-	-	2.77	2.77	-	3.73
20	3/4	26.7	1.65	2.11	2.87	3.91	-	-	-	2.87	2.87	-	3.91
25	1	33.4	1.65	2.77	3.38	4.55	-	-	-	3.38	3.38	-	4.55
32	1 1/4	42.2	1.65	2.77	3.56	4.85	-	-	-	3.56	3.56	-	4.85
40	1 1/2	48.3	1.65	2.77	3.68	5.08	-	-	-	3.68	3.68	-	5.08
50	2	60.3	1.65	2.77	3.91	5.54	-	-	-	3.91	3.91	-	5.54
65	2 1/2	73	2.11	3.05	5.16	7.01	-	-	-	5.16	5.16	-	7.01
80	3	88.9	2.11	3.05	5.49	7.62	-	-	-	5.49	5.49	-	7.62
90	3 1/2	101.6	2.11	3.05	5.74	8.08	-	-	-	5.74	5.74	-	8.08
100	4	114.3	2.11	3.05	6.02	8.56	-	-	-	6.02	6.02	-	8.56
125	5	141.3	2.77	3.4	6.55	9.53	-	-	-	6.55	6.55	-	9.53
150	6	168.3	2.77	3.4	7.11	10.97	-	-	-	7.11	7.11	-	10.97
200	8	219.1	2.77	3.76	8.18	12.7	-	6.35	7.04	8.18	8.18	10.31	12.7
250	10	273	3.4	4.19	9.27	12.7	-	6.35	7.8	9.27	9.27	12.7	12.7
300	12	323.8	3.96	4.57	9.53	12.7	-	6.35	8.38	9.53	10.31	14.27	12.7
350	14	355.6	3.96	4.78	-	-	6.35	7.92	9.53	9.53	11.13	15.09	12.7
400	16	406.4	4.19	4.78	-		6.35	7.92	9.53	9.53	12.7	16.66	12.7
450	18	457	4.19	4.78	-	-	6.35	7.92	11.13	9.53	14.27	19.05	12.7
500	20	508	4.78	5.54	-	-	6.35	9.53	12.7	9.53	15.09	20.62	12.7

►Shotp Shoot

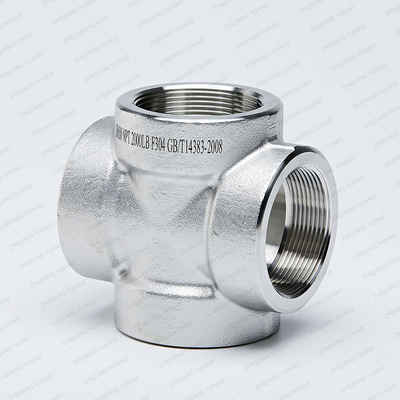

New Energy Pipeline Stainless Steel Forged Pipe Fittings Equal Industrial Cross 0

►FAQ

Q1: Are you manufacturer or trading company?
A: We are not only manufacturer but also a trading company,we have more than 12years export experience.

Q2: What is your minimum order quantity?

A: The MOQ for each product is different, so it would be recommended to refer to the detail page of the product you are interested in. If you need further clarification, send me the product link, and I will reply as soon as possible.

Q3:Delivery time?
A:1- 7 days for small order.10- 20 days for big order.

Q4: Do you provide samples ? Is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q5: How long is your production lead time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
