ASME API Stainless Socket Weld Fittings High Pressure Socket Weld Fittings

MOQ:	100kgs
Price:	Negotiation
Standard Packaging:	Standard sea worth bundles,Standard Plywood cases
Delivery Period:	15days
Payment Method:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

YUHAO

Certification

ASTM, AISI, GB, DIN, JIS

Model Number

High Pressure pipe fittings

Features:

High Pressure Resistance, Corrosion Resistance, Durable, Easy To Install

Type:

Forged Pipe Fittings

Surface:

Pickled, Sandblasting, Polishing

Standards:

ASME B16.11, MSS SP-79, MSS SP-83, MSS SP-95

Material:

Stainless Steel

Pressure:

High Pressure

Delivery:

Within 30 Days After Receiving The Deposit

Connection:

Threaded, Socket Weld, Butt Weld

Size:

1/8 Inch To 12 Inch

Ends:

NPT, BSPT, BSP, DIN2999

Applications:

Chemical, Petroleum, Power, Gas, Metallurgy, Shipbuilding, Construction, Etc.

Payment:

T/T, L/C, Western Union, Paypal

Highlight:

ASME stainless socket weld fittings

API stainless socket weld fittings

High Pressure socket weld fittings

Product Description

Certified to ASME API and ISO Standards Stainless Steel High Pressure Forged Pipe Fittings for High-Pressure Applications

►Products description

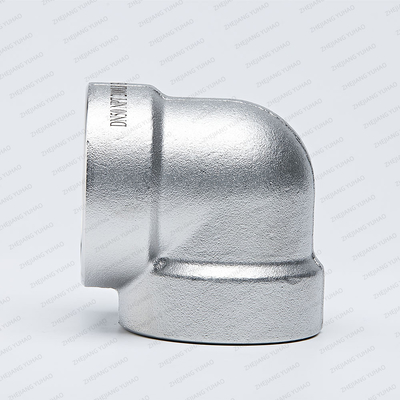

The High-Pressure Threaded 90° Elbow is a durable and reliable pipe fitting designed for high-pressure applications. Made from high-quality materials, it features a 90° angle for smooth fluid flow and minimal pressure loss. It offers easy installation with threaded connections and is suitable for a wide range of industrial and chemical environments. Available in various sizes and materials, this elbow is certified to ASME, API, and ISO standards.

ASME API Stainless Socket Weld Fittings High Pressure Socket Weld Fittings 0

►Product Paramenters

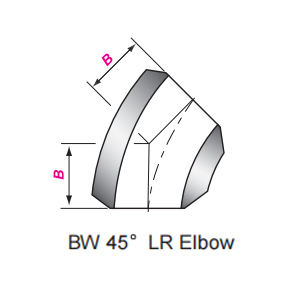

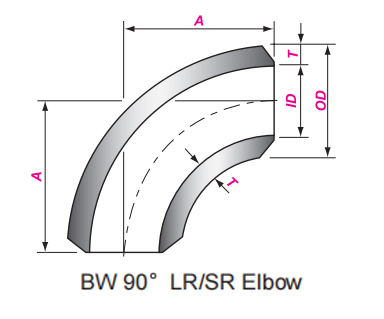

Nominal Size		Outside Diameter at Bevel	Center to End
Nominal Size		Outside Diameter at Bevel	90 Elbows		45 Elbows
DN	NPS	OD	A		B
DN	NPS	OD	LR	SR	LR
15 20 25	1/2 3/4 1	21.3 26.7 33.4	38 38 38	- - 25	16 19 22
32 40 50	1¼ 1½ 2	42.2 48.3 60.3	48 57 76	32 38 51	25 29 35
65 80 90 100	2½ 3 3½ 4	73.0 88.9 101.6 114.3	95 114 133 152	64 76 89 102	44 51 57 64
125 150 200	5 6 8	141.3 168.3 219.1	190 229 305	127 152 203	79 95 127
250 300 350	10 12 14	273.0 323.8 355.6	381 457 533	254 305 356	159 190 222
400 450 500	16 18 20	406.4 457.0 508.0	610 686 762	406 457 508	254 286 318
550 600 650	22 24 26	559.0 610.0 660.0	838 914 991	559 610 660	343 381 406
700 750 800	28 30 32	711.0 762.0 813.0	1067 1143 1219	711 762 813	438 470 502
850 900 950	34 36 38	864.0 914.0 965.0	1295 1372 1448	864 914 965	533 565 600
1000 1050 1100	40 42 44	1016.0 1067.0 1118.0	1524 1600 1676	1016 1067 1118	632 660 695
1150 1200 1300	46 48 52	1168.0 1219.0 1321.0	1753 1829 1981	1168 1219 1321	727 759 821
1400 1500 1600	56 60 64	1422.0 1524.0 1626.0	2134 2286 2438	1422 1524 1626	883 947 1010
1700 1800 1900 2000	68 72 76 80	1727.0 1829.0 1930.0 2032.0	2591 2743 2896 3048	1727 1829 1930 2032	1073 1137 1199 1263

►FAQ

Q1: How is the quality?

A: Quality is priority. We pay much attention to the quality check. Every product will be fully assembled and carefully tested before it's packed for shipment.

Q2: What is your minimum order quantity?

A: The MOQ for each product is different, so it would be recommended to refer to the detail page of the product you are interested in. If you need further clarification, send me the product link, and I will reply as soon as possible.

Q3: Can I customize products?

A: Yes. Let me know the specific customization requirements, and I will get back to you as soon as possible.

Q4: Do you provide samples ? Is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q5: How long is your production lead time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
