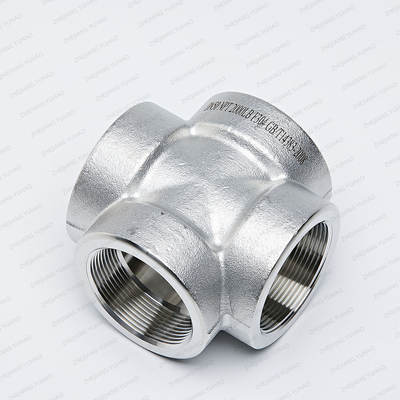

304L Stainless Steel Forged Pipe Fittings Equal Cross Ss Forged Fittings

MOQ:	100kgs
Price:	Negotiation
Standard Packaging:	Standard sea worth bundles,Standard Plywood cases
Delivery Period:	5-15days
Payment Method:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity:	2000tons/per month

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

YUHAO

Certification

ASTM, AISI, GB, DIN, JIS

Model Number

High Pressure pipe fittings

Shape:

Cross

Connection Type:

Threaded Or Socket Welded

Application:

Oil And Gas/Petrochemical/Chemical/Power/Shipbuilding

End Type:

Male/Female

Thread Type:

NPT/BSPT

Temperature Rating:

Up To 1000°F

Size:

1/8"-32"

Pressure Rating:

High Pressure

Material:

SS 304L

Finish:

Percision Turning And Forging

Certificate:

ISO 9001, CE

Highlight:

304L Stainless Steel Forged Pipe Fittings

Stainless Steel Forged Pipe Fittings

Equal Cross ss forged fittings

Product Description

Simple Installation 316 High-Pressure Barrel Nipples

►Products description

The Stainless Steel High-Pressure Equal Cross is a robust and durable fitting designed for high-pressure fluid systems. Constructed from high-quality stainless steel, it ensures excellent corrosion resistance and mechanical strength, suitable for demanding environments such as petrochemical, marine, and medical applications. Its equal cross design allows for uniform fluid distribution, making it ideal for complex piping systems. With a working pressure range of up to 19,000 psi and compatibility with various media, it offers reliable performance and easy installation, often featuring finger-tight seals for convenience.

►Products Size

DN	NPS	OD	Nominal Wall Thickness
DN	NPS	OD	Schss	Sch10S	Sch405	Sch8os	Sch10	Sch20	Sch30	STD	Sch40	Sch60	XS
6	1/8	10.3	-	1.24	1.73	2.41	-	-	-	1.73	1.73	-	2.41
8	1/4	13.7		1.65	2.24	3.02	-	-	-	2.24	2.24	-	3.02
10	3/8	17.1	-	1.65	2.31	3.2	-	-	-	2.31	2.31	-	3.2
15	1/2	21.3	1.65	2.11	2.77	3.73	-	-	-	2.77	2.77	-	3.73
20	3/4	26.7	1.65	2.11	2.87	3.91	-	-	-	2.87	2.87	-	3.91
25	1	33.4	1.65	2.77	3.38	4.55	-	-	-	3.38	3.38	-	4.55
32	1 1/4	42.2	1.65	2.77	3.56	4.85	-	-	-	3.56	3.56	-	4.85
40	1 1/2	48.3	1.65	2.77	3.68	5.08	-	-	-	3.68	3.68	-	5.08
50	2	60.3	1.65	2.77	3.91	5.54	-	-	-	3.91	3.91	-	5.54
65	2 1/2	73	2.11	3.05	5.16	7.01	-	-	-	5.16	5.16	-	7.01
80	3	88.9	2.11	3.05	5.49	7.62	-	-	-	5.49	5.49	-	7.62
90	3 1/2	101.6	2.11	3.05	5.74	8.08	-	-	-	5.74	5.74	-	8.08
100	4	114.3	2.11	3.05	6.02	8.56	-	-	-	6.02	6.02	-	8.56
125	5	141.3	2.77	3.4	6.55	9.53	-	-	-	6.55	6.55	-	9.53
150	6	168.3	2.77	3.4	7.11	10.97	-	-	-	7.11	7.11	-	10.97
200	8	219.1	2.77	3.76	8.18	12.7	-	6.35	7.04	8.18	8.18	10.31	12.7
250	10	273	3.4	4.19	9.27	12.7	-	6.35	7.8	9.27	9.27	12.7	12.7
300	12	323.8	3.96	4.57	9.53	12.7	-	6.35	8.38	9.53	10.31	14.27	12.7
350	14	355.6	3.96	4.78	-	-	6.35	7.92	9.53	9.53	11.13	15.09	12.7
400	16	406.4	4.19	4.78	-		6.35	7.92	9.53	9.53	12.7	16.66	12.7
450	18	457	4.19	4.78	-	-	6.35	7.92	11.13	9.53	14.27	19.05	12.7
500	20	508	4.78	5.54	-	-	6.35	9.53	12.7	9.53	15.09	20.62	12.7

►Shot Shoot

304L Stainless Steel Forged Pipe Fittings Equal Cross Ss Forged Fittings 0

►FAQ

Q1: How is the quality about the products?

A: Quality is priority. We pay much attention to the quality check. Every product will be fully assembled and carefully tested before it's packed for shipment.

Q2: What is your minimum order quantity?

A: The MOQ for each product is different, so it would be recommended to refer to the detail page of the product you are interested in. If you need further clarification, send me the product link, and I will reply as soon as possible.

Q3:Delivery time?
A:1- 7 days for small order.10- 20 days for big order.

Q4: Do you provide samples ? Is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q5: How long is your production lead time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
