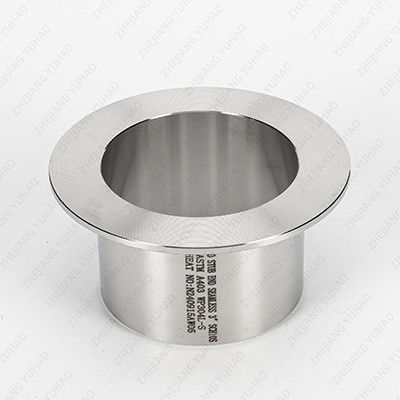

Seamless Smls Butt-welded Bw Pipe Fitting 316Ti SS Lap Joint Stub Ends

MOQ:	100kgs
Price:	Negotiation
Standard Packaging:	Standard sea worth bundles,Standard Plywood cases
Delivery Period:	15days
Payment Method:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Capacity:	2000tons/per month

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

YUHAO

Certification

ASTM, AISI, GB, DIN, JIS,EN

Model Number

Butt Weld Pipe Fittings

Wall Thickness:

SCH 5s-SCH XXS

Customized Support:

OEM, ODM, OBM

Surface Treatment:

Mirror, Polishing, Sandblasting, Sand Rolled.

Connection Type:

Butt Welded

Application:

Oil, Gas, Chemical, Petrochemical, Power, Etc.

Packing:

PLY-wooden Case Or Pallet Or As For Clients' Requirements.

Standard:

EN, ASTM, AISI, DIN, JIS

Grade:

304, 304L, 316, 316L, 410, 420, 439

Service:

Product Customization

Size:

1/2" Up To 48"

Type:

Long Or Short

Product Description

Seamless Smls Butt-welded Bw Pipe Fitting 316Ti SS Lap Joint Stub Ends

►Products description

Engineered to perfection, our stainless steel butt welded stub ends provide reliable flange connections for critical piping applications. Manufactured from premium 304/316/316L/321/347 and duplex stainless steel grades, these components deliver:

Flange Compatibility: Precision-machined to perfectly match ANSI/ASME B16.5, B16.47, and DIN standards
Superior Weld Integrity: Beveled ends prepared for perfect butt welding with full penetration
Pressure Resistance: Rated for Class 150 to 2500 applications
Corrosion Protection: Optional electropolished or pickled finishes available
Temperature Range: Suitable for -29°C to 800°C operating conditions

Manufacturing Superiority:
Our advanced production capabilities include:

State-of-the-Art Fabrication:

CNC-controlled machining centers with ±0.02mm tolerance
Automated orbital welding systems with digital monitoring
In-house metallurgical testing and certification

Rigorous Quality Assurance:

100% dimensional verification to MSS SP-43 standards
PMI (Positive Material Identification) testing
Hydrostatic and pneumatic pressure testing options
Full traceability with material test certificates

Unparalleled Inventory Advantages:

Our strategically stocked inventory features:

Immediate Availability: Over 10,000 standard units ready for 24-hour dispatch
Comprehensive Size Range: 1/2" to 60" (DN15 to DN1500)
Full Pressure Class Coverage: 150# to 2500#
Special Configurations: Available in Type A (for lap joint flanges) and Type B (for standard flanges)
Surface Finishes: Mill finish, polished (up to 320 grit), or special coatings

Our stainless steel butt welded stub ends are the preferred choice for oil & gas, chemical processing, power generation, and water treatment applications worldwide. Contact our technical sales team for project-specific solutions and immediate quotations.

►Industry-specific attributes

Place of Origin	China
Brand name	Yuhao
Connectivity	Welding
Size	1/2" up to 48"
Wall thickness	SCH 5s-SCH XXS
customized Support	ASTM DIN EN BS JIS GOST etc.
Surface treatment	Sand blasting, Roll blasting, Pickled or Polished
Type	Long or Short
Pressure	High Pressure
Packing	Cartons, Pallet, Cases

►Product Size

DN	NPS	OD	Nominal Wall Thickness
DN	NPS	OD	Schss	Sch10S	Sch405	Sch8os	Sch10	Sch20	Sch30	STD	Sch40	Sch60	XS
6	1/8	10.3	-	1.24	1.73	2.41	-	-	-	1.73	1.73	-	2.41
8	1/4	13.7		1.65	2.24	3.02	-	-	-	2.24	2.24	-	3.02
10	3/8	17.1	-	1.65	2.31	3.2	-	-	-	2.31	2.31	-	3.2
15	1/2	21.3	1.65	2.11	2.77	3.73	-	-	-	2.77	2.77	-	3.73
20	3/4	26.7	1.65	2.11	2.87	3.91	-	-	-	2.87	2.87	-	3.91
25	1	33.4	1.65	2.77	3.38	4.55	-	-	-	3.38	3.38	-	4.55
32	1 1/4	42.2	1.65	2.77	3.56	4.85	-	-	-	3.56	3.56	-	4.85
40	1 1/2	48.3	1.65	2.77	3.68	5.08	-	-	-	3.68	3.68	-	5.08
50	2	60.3	1.65	2.77	3.91	5.54	-	-	-	3.91	3.91	-	5.54
65	2 1/2	73	2.11	3.05	5.16	7.01	-	-	-	5.16	5.16	-	7.01
80	3	88.9	2.11	3.05	5.49	7.62	-	-	-	5.49	5.49	-	7.62
90	3 1/2	101.6	2.11	3.05	5.74	8.08	-	-	-	5.74	5.74	-	8.08
100	4	114.3	2.11	3.05	6.02	8.56	-	-	-	6.02	6.02	-	8.56
125	5	141.3	2.77	3.4	6.55	9.53	-	-	-	6.55	6.55	-	9.53
150	6	168.3	2.77	3.4	7.11	10.97	-	-	-	7.11	7.11	-	10.97
200	8	219.1	2.77	3.76	8.18	12.7	-	6.35	7.04	8.18	8.18	10.31	12.7
250	10	273	3.4	4.19	9.27	12.7	-	6.35	7.8	9.27	9.27	12.7	12.7
300	12	323.8	3.96	4.57	9.53	12.7	-	6.35	8.38	9.53	10.31	14.27	12.7
350	14	355.6	3.96	4.78	-	-	6.35	7.92	9.53	9.53	11.13	15.09	12.7
400	16	406.4	4.19	4.78	-		6.35	7.92	9.53	9.53	12.7	16.66	12.7
450	18	457	4.19	4.78	-	-	6.35	7.92	11.13	9.53	14.27	19.05	12.7
500	20	508	4.78	5.54	-	-	6.35	9.53	12.7	9.53	15.09	20.62	12.7

►Factroy Shoot

Seamless Smls Butt-welded Bw Pipe Fitting 316Ti SS Lap Joint Stub Ends 0

Seamless Smls Butt-welded Bw Pipe Fitting 316Ti SS Lap Joint Stub Ends 1

Seamless Smls Butt-welded Bw Pipe Fitting 316Ti SS Lap Joint Stub Ends 2

►FAQ

Q1: Do you provide samples ? Is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q2: How long is your production lead time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q3: How is the quality about the products?

A: Quality is priority. We pay much attention to the quality check. Every product will be fully assembled and carefully tested before it's packed for shipment.

Q4: What is your minimum order quantity?

A: The MOQ for each product is different, so it would be recommended to refer to the detail page of the product you are interested in. If you need further clarification, send me the product link, and I will reply as soon as possible.

Q5: Delivery time?

A: 1- 7 days for small order.10- 20 days for big order.
