10.29MM GL ASME Stainless Steel Seamless Pipes ABS DNV LR BV ASTM A312 Stainless 316 Pipe

MOQ:	100KGS
Price:	NEGOTIATION
Standard Packaging:	PACKAGED IN SEA-WORTH BUNDLES,PACKAGED IN PLYWOOD CASES
Delivery Period:	15-40DAYS
Payment Method:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity:	1000TONS/PER MONTH

Details Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

YUHAO

Certification

ISO PED CE TUV

Model Number

Seamless Pipes

Steel Grade:

304, 316, 321, 310S, Duplex

Corrosion Resistance:

High-Temperature Oxidation Resistance, Seawater Resistance

Standard:

AISI, ASTM, DIN, EN, GB

1/8" NB TO 32" NB , (10.29MM-812.80MM)

SCH 10S, SCH 40S, SCH 80S, SCH160, 0.5 Mm To 50 Mm

Length:

0.5M-15M OR AS REQUESTED

Applications:

Mining, Shipbuilding, Construction, Pulp & Paper, Food, Medical Technology, Environmental Protection

Performance Testing:

Non-Destructive Testing, Pressure Testing, Mechanical Properties Testing

Package:

PACKAGED IN SEA-WORTH BUNDLES OR PLYWOODE CASE OR AS REQUESTED

Highlight:

10.29MM GL Stainless Steel Seamless Pipes

ASME Stainless Steel Seamless Pipes

stainless 316 pipe

Product Description

ASTM A312 TP316L Stainless Steel Seamless Pipe ABS DNV LR BV GL ASME

►Products Information

Stainless steel seamless pipes are high-performance, corrosion-resistant tubes widely used in industries such as oil and gas, chemical processing, and power generation. Manufactured through a precise extrusion or piercing process, these pipes lack welded seams, ensuring superior strength and durability. Their smooth internal surface minimizes friction, enhancing fluid flow efficiency. Available in various grades like 304, 316, and 321, they offer excellent resistance to high temperatures, pressure, and corrosive environments. Ideal for critical applications, stainless steel seamless pipes are valued for their reliability, longevity, and ability to maintain structural integrity under extreme conditions. They are a preferred choice for demanding industrial and commercial projects.

►Product Size

STAINLESS STEEL (ASTM/ANSI)
B	O.D	SCH 5S	SCH 10S	SCH 10	SCH 20S	SCH 40S	SCH 40	STD	SCH 80S	SCH 80
1/8"	10.29	-	1.24	1.24	-	1.73	1.73	1.73	2.41	2.41
1/4"	13.72	-	1.65	1.65	-	2.24	2.24	2.24	3.02	3.02
3/8"	17.15	-	1.65	1.65	-	2.31	2.31	2.31	3.2	3.2
1/2"	21.34	1.65	2.11	2.11	-	2.77	2.77	2.77	3.73	3.73
3/4"	26.67	1.65	2.11	2.11	-	2.87	2.87	2.87	3.91	3.91
1"	33.4	1.65	2.77	2.77	-	3.38	3.38	3.38	4.55	4.55
1 1/4"	42.16	1.65	2.77	2.77	-	3.56	3.56	3.56	4.85	4.85
1 1/2"	48.26	1.65	2.77	2.77	-	3.68	3.68	3.68	5.08	5.08
2"	60.33	1.65	2.77	2.77	-	3.91	3.91	3.91	5.54	5.54
2 1/2"	73.03	2.11	3.05	3.05	-	5.16	5.16	5.16	7.01	7.01
3"	88.9	2.11	3.05	3.05	-	5.49	5.49	5.49	7.62	7.62
3 1/2"	101.6	2.11	3.05	3.05	-	5.74	5.74	5.74	8.08	8.08
4"	114.3	2.11	3.05	3.05	-	6.02	6.02	6.02	8.56	8.56
5"	141.3	2.77	3.4	3.4	-	6.55	6.55	6.55	9.53	9.53
6"	168.28	2.77	3.4	3.4	-	7.11	7.11	7.11	10.97	10.97
8"	219.08	2.77	3.76	3.76	6.35	8.18	8.18	8.18	12.7	12.7
10"	273.05	3.4	4.19	4.19	6.35	9.27	9.27	9.27	12.7	15.09
12"	323.85	3.96	4.57	4.57	6.35	9.52	10.31	9.52	12.7	17.48
14"	355.6	3.96	4.78	6.35	7.92	-	11.13	9.52	-	19.05
16"	406.4	4.19	4.78	6.35	7.92	-	12.7	9.52	-	21.44
18"	457.2	4.19	4.78	6.35	7.92	-	14.27	9.52	-	23.83
20"	508	4.78	5.54	6.35	9.52	-	15.09	9.52	-	26.19
22"	558.8	4.78	5.54	6.35	9.52	-	15.09	9.52	-	28.58
24"	609.6	5.54	6.35	6.35	9.52	-	17.48	9.52	-	30.96
26"	660.4	-		7.92	12.7	-	17.48	9.52		-

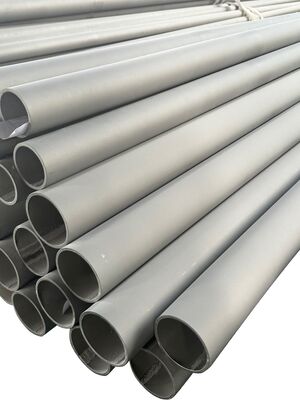

►Factory Shoot

10.29MM GL ASME Stainless Steel Seamless Pipes ABS DNV LR BV ASTM A312 Stainless 316 Pipe 0

10.29MM GL ASME Stainless Steel Seamless Pipes ABS DNV LR BV ASTM A312 Stainless 316 Pipe 2

►FAQ

Q1: How is the quality?

A: Quality is priority. We pay much attention to the quality check. Every product will be fully assembled and carefully tested before it's packed for shipment.

Q2: Which payment terms you can accept?

A: We can accept TT,LC,DP,DA,Western Union or Negotiation.

Q2: What is your minimum order quantity?

A: The MOQ for each product is different, so it would be recommended to refer to the detail page of the product you are interested in. If you need further clarification, send me the product link, and I will reply as soon as possible.

Q4: Do you provide samples ? Is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q5: How long is your production lead time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
