DIN 316L Cold Drawn Seamless Tubing Moisture Proofing Cold Drawn Tubes

MOQ:	100KGS
Price:	NEGOTIATION
Standard Packaging:	PACKAGED IN SEA-WORTH BUNDLES,PACKAGED IN PLYWOOD CASES
Delivery Period:	15-40DAYS
Payment Method:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity:	1000TONS/PER MONTH

Details Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

YUHAO

Certification

ISO PED CE TUV

Model Number

Seamless Pipes

Steel Grade:

304, 316, 321, 310S, Duplex

Corrosion Resistance:

High-Temperature Oxidation Resistance, Seawater Resistance

Standard:

AISI, ASTM, DIN, EN, GB

1/8''-4''

SCH 10S, SCH 40S, SCH 80S, SCH160

Length:

0.5M-15M OR AS REQUESTED

Applications:

Pulp & Paper, Food, Medical Technology, Environmental Protection, Nuclear Power, Pharmaceutical Machinery, Aircraft And Aerospace

Protective Measures:

Moisture Proofing, Rust Prevention, Shock Absorption

Package:

PACKAGED IN SEA-WORTH BUNDLES OR PLYWOODE CASE OR AS REQUESTED

Highlight:

DIN cold drawn seamless tubing

316L cold drawn seamless tubing

Moisture Proofing cold drawn tubes

Product Description

316L Cold Drawn Seamless Pipes, Moisture Proofing, Seamless Stainless Tube

►Products Information

Stainless steel seamless pipes are a hallmark of precision engineering, crafted to deliver unparalleled strength and durability in demanding environments. Manufactured through a process that involves extruding a solid billet into a hollow tube without seams, these pipes boast a smooth, uniform surface that enhances fluid flow and resists corrosion. Ideal for high-pressure applications, they are widely used in industries such as oil and gas, chemical processing, and power generation. Their inherent resistance to extreme temperatures and corrosive substances ensures longevity and reliability. With a sleek, polished finish, stainless steel seamless pipes not only perform exceptionally but also add a touch of sophistication to industrial and architectural designs.

►Product Size

STAINLESS STEEL(KS/JIS)
A	O.D	SCH 5S	SCH 10S	SCH 20S	SCH 40	SCH 80	SCH 120	SCH 160
6A	10.5	1	1.2	1.5	1.7	2.4	-	-
8A	13.8	1.2	1.65	2	2.2	3	-	-
10A	17.3	1.2	1.65	2	2.3	3.2	-	-
15A	21.7	1.65	2.1	2.5	2.8	3.7	-	4.7
20A	27.2	1.65	2.1	2.5	2.9	3.9	-	5.5
25A	34	1.65	2.8	3	3.4	4.5	-	6.4
32A	42.7	1.65	2.8	3	3.6	4.9	-	6.4
40A	48.6	1.65	2.8	3	3.7	5.1	-	7.1
50A	60.5	1.65	2.8	3.5	3.9	5.5	-	8.7
65A	76.3	2.1	3	3.5	5.2	7	-	9.5
80A	89.1	2.1	3	4	5.5	7.6	-	11.1
90A	101.6	2.1	3	4	5.7	8.1	-	12.7
100A	114.3	2.1	3	4	6	8.6	11.1	13.5
125A	139.8	2.8	3.4	5	6.6	9.5	12.7	15.9
150A	165.2	2.8	3.4	5	7.1	11	14.3	18.2
200A	216.3	2.8	4	6.5	8.2	12.7	18.2	23
250A	267.4	3.4	4	6.5	9.3	15.1	21.4	28.6
300A	318.5	4	4.5	6.5	10.3	17.4	25.4	33.3
350A	355.6	-	-	-	11.1	19	27.8	35.7
400A	406.4	-	-	-	12.7	21.4	30.9	40.5
450A	457.2	-	-	-	14.3	23.8	34.9	45.2
500A	508	-	-	-	15.1	26.2	38.1	50
550A	558.8	-	-	-	15.9	28.6	41.3	54
600A	609.6	-	-	-	17.5	31	46	59.5
650A	660.4	-	-	-	18.9	34	49.1	64.2

►Factory Shoot

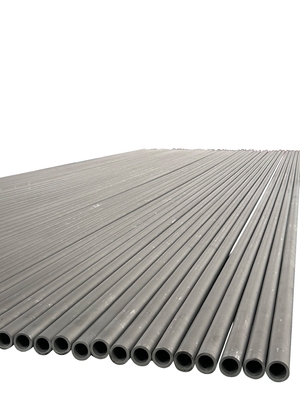

DIN 316L Cold Drawn Seamless Tubing Moisture Proofing Cold Drawn Tubes 0

►FAQ

Q1: What about your delivery time if we placed order?

A: We have large of ready stock,in general we can delivery within 2-10days.

Q2: How do you ensure product quality?

A: We have a dedicated team of experts who rigorously inspect each stage of the production process. Every product undergoes quality testing at our factory before it is shipped.

Q3: Can I customize products?

A: Yes. Let me know the specific customization requirements, and I will get back to you as soon as possible.

Q4: What is your minimum order quantity?

A: The MOQ for each product is different, so it would be recommended to refer to the detail page of the product you are interested in. If you need further clarification, send me the product link, and I will reply as soon as possible.

Q5: Which payment terms you can accept?

A: We can accept TT,LC,DP,DA,Western Union or Negotiation.
