TP304L Stainless Steel Seamless Pipes SS IS09001 Sch 80 316 Seamless Pipe

Products

Stainless Steel Seamless Pipes

Stainless Steel Butt Welded Pipe Fittings

Stainless Steel Screwed Pipe Fittings

Stainless Steel Forged Pipe Fittings

Stainless Steel Sanitary Pipe Fittings

Department 1

krystal@zhejiangyuhao.com

86-577-86370073

Contact Now

TP304L Stainless Steel Seamless Pipes SS IS09001 Sch 80 316 Seamless Pipe

MOQ:	100KGS
Price:	NEGOTIATION
Standard Packaging:	PACKAGED IN SEA-WORTH BUNDLES,PACKAGED IN PLYWOOD CASES
Delivery Period:	15-40DAYS
Payment Method:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity:	1000TONS/PER MONTH

Details Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

Certification

ISO PED CE TUV

Model Number

Seamless Pipes

Steel Grade:

304, 316, 321, 310S, Duplex

Corrosion Resistance:

High-Temperature Oxidation Resistance, Seawater Resistance

Standard:

AISI, ASTM, DIN, EN, GB

1/8''-4''

SCH 10S, SCH 40S, SCH 80S, SCH160

Length:

0.5M-15M OR AS REQUESTED

Applications:

Manufacturing, Mining, Shipbuilding, Construction, Pulp & Paper, Food, Medical Technology

Surface:

Galvanized, Painted, Electrophoretic Coating

Package:

PACKAGED IN SEA-WORTH BUNDLES OR PLYWOODE CASE OR AS REQUESTED

Highlight:

TP304L Stainless Steel Seamless Pipes

IS09001 316 Seamless Pipe

sch 80 sch 80 pipe

Product Description

ASTM A312 TP304L Sch 80 SS, Srainless Steel Pipe IS09001 316 Seamless Pipe

►Products Information

Stainless steel and Ni-based alloy pipes and tubes are celebrated for their exceptional corrosion resistance, heat resistance, and low-temperature properties, making them indispensable in challenging environments such as petroleum refining, petrochemicals, and energy industries, including power and gas. Their impressive durability and strength have also driven their adoption in architectural applications, where their sleek and polished appearance enhances aesthetic value. Additionally, these materials are increasingly employed in high-cleanliness sectors, particularly in semiconductor and liquid-crystal manufacturing equipment, where adhering to rigorous cleanliness standards is critical for ensuring optimal operational efficiency.

►Product Size

STAINLESS STEEL(KS/JIS)
A	O.D	SCH 5S	SCH 10S	SCH 20S	SCH 40	SCH 80	SCH 120	SCH 160
6A	10.5	1	1.2	1.5	1.7	2.4	-	-
8A	13.8	1.2	1.65	2	2.2	3	-	-
10A	17.3	1.2	1.65	2	2.3	3.2	-	-
15A	21.7	1.65	2.1	2.5	2.8	3.7	-	4.7
20A	27.2	1.65	2.1	2.5	2.9	3.9	-	5.5
25A	34	1.65	2.8	3	3.4	4.5	-	6.4
32A	42.7	1.65	2.8	3	3.6	4.9	-	6.4
40A	48.6	1.65	2.8	3	3.7	5.1	-	7.1
50A	60.5	1.65	2.8	3.5	3.9	5.5	-	8.7
65A	76.3	2.1	3	3.5	5.2	7	-	9.5
80A	89.1	2.1	3	4	5.5	7.6	-	11.1
90A	101.6	2.1	3	4	5.7	8.1	-	12.7
100A	114.3	2.1	3	4	6	8.6	11.1	13.5
125A	139.8	2.8	3.4	5	6.6	9.5	12.7	15.9
150A	165.2	2.8	3.4	5	7.1	11	14.3	18.2
200A	216.3	2.8	4	6.5	8.2	12.7	18.2	23
250A	267.4	3.4	4	6.5	9.3	15.1	21.4	28.6
300A	318.5	4	4.5	6.5	10.3	17.4	25.4	33.3
350A	355.6	-	-	-	11.1	19	27.8	35.7
400A	406.4	-	-	-	12.7	21.4	30.9	40.5
450A	457.2	-	-	-	14.3	23.8	34.9	45.2
500A	508	-	-	-	15.1	26.2	38.1	50
550A	558.8	-	-	-	15.9	28.6	41.3	54
600A	609.6	-	-	-	17.5	31	46	59.5
650A	660.4	-	-	-	18.9	34	49.1	64.2

►Factory Shoot

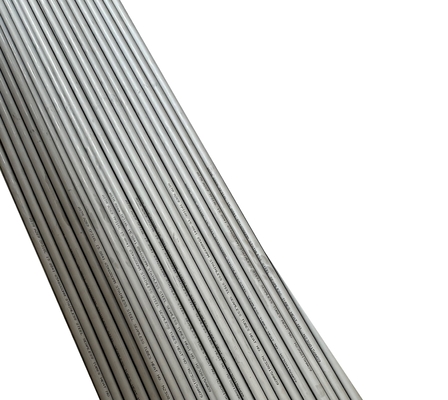

TP304L Stainless Steel Seamless Pipes SS IS09001 Sch 80 316 Seamless Pipe 2

►FAQ

Q1: Can you supply what's the service?

A: We can supply the kinds of matel raw materies and products,such as pipes,pipe fittings,flanges,coil,sheet,round bar and so on...

Q2: Are you manufacturer or trading company?

A: We are not only manufacturer but also a trading company,we have more than 12years export experience.

Q3: Can I customize products?

A: Yes. Let me know the specific customization requirements, and I will get back to you as soon as possible.

Q4: How do you ensure product quality?

A: We have a dedicated team of experts who rigorously inspect each stage of the production process. Every product undergoes quality testing at our factory before it is shipped.

Q5: How is the after-sales service?

A: Quality are promised. If our products are not meet the contract we would like to send free goods to you.
