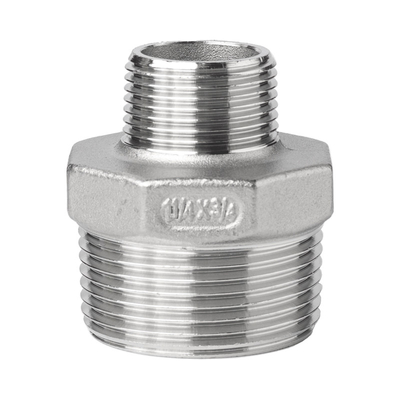

DIN ASME Stainless Steel Pipe Fitttings F304L F304 Reduce Hexagonal Nipple
  • name

DIN ASME Stainless Steel Pipe Fitttings F304L F304 Reduce Hexagonal Nipple

MOQ: 100kgs
Price: Negotiation
Standard Packaging: Standard sea worth bundles,Standard Plywood cases
Delivery Period: 5-15days
Payment Method: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity: 2000tons/per month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
YUHAO
Certification
ASTM, AISI, GB, DIN, JIS
Model Number
Screwed pipe fittings
Customized Support:
OEM
Application:
Oil And Gas/Petrochemical/Chemical/Automative
Warranty:
3 Years
Size:
1/8"-32"
Standard:
ANSI JIS DIN ASME
Packing:
Wooden Case,Bags，pallets
Thread:
BSPP BSPT NPT
Technics:
Forged,Casting,Butt Weld,Cold Forming,CNC
Type:
Seamless
Usage:
Steel Pipe,connection For Pipes
Highlight:

DIN Stainless Steel Pipe Fitttings

,

ASME Stainless Steel Pipe Fitttings

,

Reduce Hexagonal Nipple

Product Description

Stainless Steel Pipe Fitttings F304L/F304 Reduce Hexagonal Nipple for for Special Pipe Connection



►Products description

The Stainless Steel Pipe Fittings F304L/F304 Reduce Hexagonal Nipple is designed for specialized pipe connections in demanding industrial applications. Crafted from high-quality F304L or F304 stainless steel, it offers exceptional corrosion resistance, durability, and strength, making it ideal for chemical, petrochemical, and marine environments. The hexagonal design ensures easy installation and maintenance, while the reducing feature allows seamless transition between different pipe sizes. Precision-engineered for leak-proof connections, this nipple guarantees reliable performance in high-pressure and high-temperature systems. It is a trusted solution for critical applications requiring superior quality and long-term reliability.



►Products Size

DN NPS OD Nominal Wall Thickness
Schss Sch10S Sch405 Sch8os Sch10 Sch20 Sch30 STD Sch40 Sch60 XS
6 1/8 10.3 - 1.24 1.73 2.41 - - - 1.73 1.73 - 2.41
8 1/4 13.7   1.65 2.24 3.02 - - - 2.24 2.24 - 3.02
10 3/8 17.1 - 1.65 2.31 3.2 - - - 2.31 2.31 - 3.2
15 1/2 21.3 1.65 2.11 2.77 3.73 - - - 2.77 2.77 - 3.73
20 3/4 26.7 1.65 2.11 2.87 3.91 - - - 2.87 2.87 - 3.91
25 1 33.4 1.65 2.77 3.38 4.55 - - - 3.38 3.38 - 4.55
32 1 1/4 42.2 1.65 2.77 3.56 4.85 - - - 3.56 3.56 - 4.85
40 1 1/2 48.3 1.65 2.77 3.68 5.08 - - - 3.68 3.68 - 5.08
50 2 60.3 1.65 2.77 3.91 5.54 - - - 3.91 3.91 - 5.54
65 2 1/2 73 2.11 3.05 5.16 7.01 - - - 5.16 5.16 - 7.01
80 3 88.9 2.11 3.05 5.49 7.62 - - - 5.49 5.49 - 7.62
90 3 1/2 101.6 2.11 3.05 5.74 8.08 - - - 5.74 5.74 - 8.08
100 4 114.3 2.11 3.05 6.02 8.56 - - - 6.02 6.02 - 8.56
125 5 141.3 2.77 3.4 6.55 9.53 - - - 6.55 6.55 - 9.53
150 6 168.3 2.77 3.4 7.11 10.97 - - - 7.11 7.11 - 10.97
200 8 219.1 2.77 3.76 8.18 12.7 - 6.35 7.04 8.18 8.18 10.31 12.7
250 10 273 3.4 4.19 9.27 12.7 - 6.35 7.8 9.27 9.27 12.7 12.7
300 12 323.8 3.96 4.57 9.53 12.7 - 6.35 8.38 9.53 10.31 14.27 12.7
350 14 355.6 3.96 4.78 - - 6.35 7.92 9.53 9.53 11.13 15.09 12.7
400 16 406.4 4.19 4.78 -   6.35 7.92 9.53 9.53 12.7 16.66 12.7
450 18 457 4.19 4.78 - - 6.35 7.92 11.13 9.53 14.27 19.05 12.7
500 20 508 4.78 5.54 - - 6.35 9.53 12.7 9.53 15.09 20.62 12.7





►Shotp Shoot

DIN ASME Stainless Steel Pipe Fitttings F304L F304 Reduce Hexagonal Nipple 0DIN ASME Stainless Steel Pipe Fitttings F304L F304 Reduce Hexagonal Nipple 1DIN ASME Stainless Steel Pipe Fitttings F304L F304 Reduce Hexagonal Nipple 2



►FAQ

Q1:Do you have any Certification ?

A: Yes we have TUV ISO9001-2015 and Presure Equipment Directive 2014/68/EU(EN-10204 3.1/3.1B)



Q2: Can we visit your factory?
A: Sure, we welcome you to visit our factory , check our production lines and know more about our strength and quality.



Q3: Do you have quality control system?
A: Yes, we have ISO certifications and our own quality control laboratory.



Q4: What is your after-sale service?
A: We provide after-sale service and offer 100% guarantee on our products.


Q5: What is the payment term?
A: T/T & L/C are the prefer payment term. Also Western-Union is acceptable for low value payment, like samples' Express fee.
