1/8in To 32in Stainless Steel Screwed Pipe Fittings Precision Steel Barrel Nipples

MOQ:	100kgs
Price:	Negotiation
Standard Packaging:	Standard sea worth bundles,Standard Plywood cases
Delivery Period:	5-15days
Payment Method:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity:	2000tons/per month

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

YUHAO

Certification

ASTM, AISI, GB, DIN, JIS

Model Number

Screwed pipe fittings

Connection Type:

Threaded Or Socket Welded

Application:

Oil And Gas/Petrochemical/Chemical/Automative

Thread Type:

NPT/BSPT/RC/R

Size:

1/8"-32"

Material:

F304 F316 F316L F304L

Packing:

Wooden Case,Bags，pallets

Thread:

BSPP BSPT NPT

Technics:

Forged,Casting,Butt Weld,Cold Forming,CNC

Color:

Silver,Picture,Black,grey

Keyword:

Threaded Pipe Fittings,Stainless Steel Pipe Fitting

Highlight:

1/8in Stainless Steel Screwed Pipe Fittings

32in Stainless Steel Screwed Pipe Fittings

precision Steel Barrel Nipples

Product Description

Stainless Steel Threaded Pipe Fittting Barrel Nipples for Pipeline Connections Corrosion Prevention

►Products description

The Stainless Steel Threaded Equal Tee in F304, F316, F316L, and F304L grades is designed for robust and reliable pipeline connections in demanding industrial applications. Crafted from high-quality stainless steel, it offers superior corrosion resistance, making it ideal for chemical, petrochemical, and oil & gas industries. Available with BSPT (British Standard Pipe Taper) or NPT (National Pipe Thread) threads, it ensures secure, leak-proof connections in high-pressure and high-temperature systems. The equal tee design facilitates uniform flow distribution, while its precision engineering guarantees seamless integration into piping networks. This product is a trusted solution for critical applications, delivering exceptional durability, weldability, and performance under extreme conditions.

►Products Size

DN	NPS	OD	Nominal Wall Thickness
DN	NPS	OD	Schss	Sch10S	Sch405	Sch8os	Sch10	Sch20	Sch30	STD	Sch40	Sch60	XS
6	1/8	10.3	-	1.24	1.73	2.41	-	-	-	1.73	1.73	-	2.41
8	1/4	13.7		1.65	2.24	3.02	-	-	-	2.24	2.24	-	3.02
10	3/8	17.1	-	1.65	2.31	3.2	-	-	-	2.31	2.31	-	3.2
15	1/2	21.3	1.65	2.11	2.77	3.73	-	-	-	2.77	2.77	-	3.73
20	3/4	26.7	1.65	2.11	2.87	3.91	-	-	-	2.87	2.87	-	3.91
25	1	33.4	1.65	2.77	3.38	4.55	-	-	-	3.38	3.38	-	4.55
32	1 1/4	42.2	1.65	2.77	3.56	4.85	-	-	-	3.56	3.56	-	4.85
40	1 1/2	48.3	1.65	2.77	3.68	5.08	-	-	-	3.68	3.68	-	5.08
50	2	60.3	1.65	2.77	3.91	5.54	-	-	-	3.91	3.91	-	5.54
65	2 1/2	73	2.11	3.05	5.16	7.01	-	-	-	5.16	5.16	-	7.01
80	3	88.9	2.11	3.05	5.49	7.62	-	-	-	5.49	5.49	-	7.62
90	3 1/2	101.6	2.11	3.05	5.74	8.08	-	-	-	5.74	5.74	-	8.08
100	4	114.3	2.11	3.05	6.02	8.56	-	-	-	6.02	6.02	-	8.56
125	5	141.3	2.77	3.4	6.55	9.53	-	-	-	6.55	6.55	-	9.53
150	6	168.3	2.77	3.4	7.11	10.97	-	-	-	7.11	7.11	-	10.97
200	8	219.1	2.77	3.76	8.18	12.7	-	6.35	7.04	8.18	8.18	10.31	12.7
250	10	273	3.4	4.19	9.27	12.7	-	6.35	7.8	9.27	9.27	12.7	12.7
300	12	323.8	3.96	4.57	9.53	12.7	-	6.35	8.38	9.53	10.31	14.27	12.7
350	14	355.6	3.96	4.78	-	-	6.35	7.92	9.53	9.53	11.13	15.09	12.7
400	16	406.4	4.19	4.78	-		6.35	7.92	9.53	9.53	12.7	16.66	12.7
450	18	457	4.19	4.78	-	-	6.35	7.92	11.13	9.53	14.27	19.05	12.7
500	20	508	4.78	5.54	-	-	6.35	9.53	12.7	9.53	15.09	20.62	12.7

►Shotp Shoot

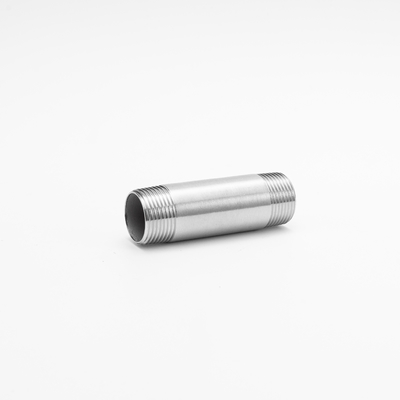

1/8in To 32in Stainless Steel Screwed Pipe Fittings Precision Steel Barrel Nipples 0

►FAQ

Q1: Do you have any Certification ?

A: Yes we have TUV ISO9001-2015 and Presure Equipment Directive 2014/68/EU(EN-10204 3.1/3.1B)

Q2: Can we visit your factory?
A: Sure, we welcome you to visit our factory , check our production lines and know more about our strength and quality.

Q3: Do YUHAO have a published price list?
A: We do NOT have a published price list. In our business market conditions are always fluctuating, which makes standard pricing
difficult to maintain. We allow our sales staff to be flexible when it comes to quoting on your requirements, which means that you
will receive the best pricing available when you need it.

Q4: Do you provide samples ? Is it free or extra?
We are glad to provide free samples to you, but we do not offer the freight.

Q5: What is the payment term?
A: T/T & L/C are the prefer payment term. Also Western-Union is acceptable for low value payment, like samples' Express fee.
